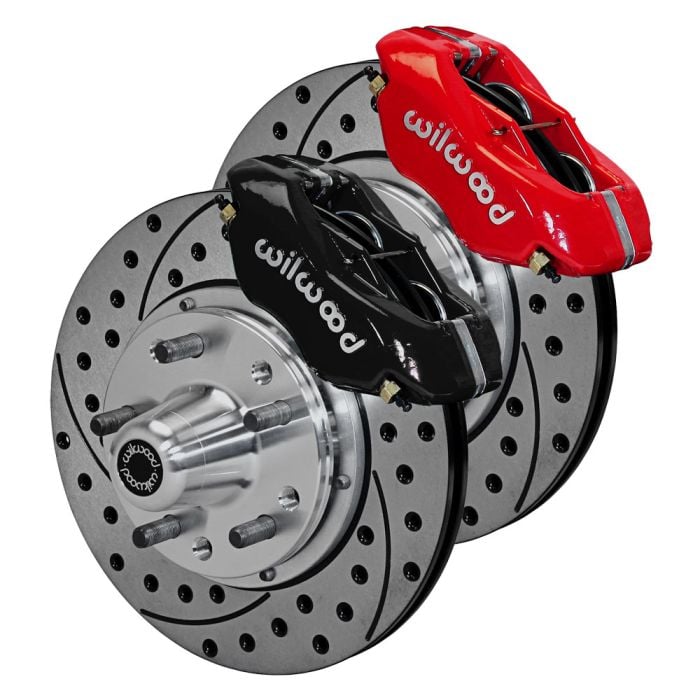

Wilwood Front Disc Brake Kit Forged Dynalite Pro Series 11" SVO 1984-1986/V8 1987-1993

CJ's Part Number:

Wilwood 11" Forged Dynalite Pro Series Front Disc Brake Kit for all 1984, 1985 and 1986 SVO Mustangs and 1987, 1988, 1989, 1990, 1991, 1992 and 1993 V8 Mustangs.

This Wilwood 11" Forged Dynalite Pro Series Front Disc Brake Kit is specifically designed to improve the braking effectiveness for all 1984-1986 SVO Mustangs, as well as 1987-1993 V8 Mustangs. Whether you want to be showing off your Mustang's look, improving its performance, or just making your daily drive go smoother, this kit is the perfect choice to acquire all you'll need with just one purchase.

Kit Includes:
- Forged Dynalite Pro Series Calipers (2)
- Caliper Mounting Bracket Kit (1)
- 11" 2-Piece SRP Drilled & Slotted Rotors (2)
- Hub Assemblies (2)
- Wheel Studs (10)
- All Necessary Bearings, Seals and Mounting Hardware

This front disc brake kit includes everything you'll need to complete your front brake upgrade. The Forged Dynalite 4-pistoned brake calipers are the most powerful units in its class. The significant power gained from the caliper’s superior design is combined with proven performance attributes from previous Wilwood designs. Each caliper is equipped with SRS stainless steel bridge plates that eliminate the bridge wear caused by pad gouging & extend the life of the body. The spring-loaded action of these plates also eliminate pad rattle and lessens the vibration harmonics that cause your brakes to squeal. Structural deflection and volume displacement tests have proven the Forged Dynalite calipers outperform all other existing styles of this caliper size.

Wilwood provides 11” SRP Drilled & Slotted Performance 2-Piece Rotors that have a specially engineered directional cross drill & face slot pattern that protect against irregular pad compound build-up on the rotor faces. This results in a smoother engagement & improved pedal response, as well as contributing to lower rotating & unsprung weight suspension. These rotors will improve your brake response and pad performances while you are braking lightly or heavily. The rotors are also finished with a black electro coat that helps prevent rust in all areas of the rotor.

The two rotor hub assemblies are made from premium grade alloy billet, forged together under high temperatures & pressure. Each assembly includes the necessary bearing races and screw-on aluminum caps needed to bolt the hub to the rotor. Wilwood’s brake kit also includes ten wheel studs and all of the bearings, seals, and mounting hardware that is required to install this front brake assembly to your Mustang.

- Suitable for Performance Braking Requirements and Style Preferences
- Useful for Daily Drivers, Race Competition, or a Show Car
- Provides Plenty of Clearance for Most Popular 15" Wheels
- Generates Big Brake Stopping Power
- Compliments All Types of Wheel, Tire, and Suspension Upgrades
- Personalizes the Style and Performance Requirements for Custom Builders
- Can Be Used with Manual or Power Boost Master Cylinders

The Forged Dynalite Pro Series Front Brake Kit from Wilwood is a great way to reach the braking requirements you desire, while showing off your preference in style. This versatile kit is effective for your Mustang whether you are using it as a daily driver, showing it off in a competition, or attempting to get the most out of its race performance. The Forged Dynalite calipers, larger rotors, and peak-performance Wilwood brake pads achieve massive stopping power to compliment any type of wheel, tire, and suspension modification.

This kit can be used with a manual or power boost master cylinder, and produces plenty of clearance inside most popular 15" wheels. The black or red caliper finishes and slick rotor design affords custom builders the capability to personalize the style and performance of even the most howling Mustangs.

Tech Tip: Can be fitted onto 1979-1986 Mustangs that have been upgraded to 1987-1993 Mustang spindles.

Please Note: This kit requires the purchase of additional front brake lines and modifications to the original spindles.

Warning: This brake kit has a hub offset of +.24” (6.096mm). The Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle.

Order a Wilwood 11" Forged Dynalite Pro Series Front Disc Brake Kit for all 1984, 1985 and 1986 SVO Mustangs and 1987, 1988, 1989, 1990, 1991, 1992 and 1993 V8 Mustangs from CJ Pony Parts today!

Installation Difficulty


Advanced skill is required for this installation.

Vehicle Fitment

This product will fit the following Mustang years:
