Aeromotive Race Fuel System Stealth Eliminator With 5.0 Fuel Rails Mustang GT500 2007-2012



  • Complete Fuel System
  • Race Ready Components
  • High Flow Fuel Pump
  • Handles 1,400+ Horsepower

Aeromotive Stealth Eliminator Race Fuel System with 5.0 4V Fuel Rails for 2007, 2008, 2009, 2010, 2011 and 2012 GT500 Mustangs.

Racing a GT500 with 5.0L engine or intake? This Aeromotive Stealth Eliminator Fuel System is a complete package, equipped with a fuel pump which can handle 1,400 horsepower and more.

Features and Benefits:
- Rated for EFI engines up to 1,400 Flywheel HP Forced Induction or 1,900 Flywheel HP Naturally Aspirated
- For Mustang Shelby GT500’s equipped with a 5.0L 4V Coyote engine and/or Equivalent Intake
- Includes Aeromotive’s HD Fuel Pump Wiring Kit for Limited Duty Racing Applications
- Billet High-Flow Fuel Rails
- Billet EFI Pressure Regulator
- One Piece CNC Y-block
- High Flow Filter
- Made in the USA

This Mustang Stealth Fuel System includes the Aeromotive Stealth Eliminator fuel pump, designed to fit inside the stock, OEM Mustang tank and integrate with the stock fuel-level sending unit and jet-siphon transfer pump. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

This Serious Aeromotive Fuel System provides all the necessary fuel system hard-parts including the Stealth In-Tank Fuel Pump, 40-micron High Flow Filter, One Piece CNC Y-block, Billet High-Flow Fuel Rails, Billet EFI Pressure Regulator and all necessary Aeromotive high flow, ORB Port Fittings.

Fuel Pump Electrical Supply is also provided, including the Fuel Pump Speed Controller, designed to keep fuel cool in cars that will see extended street driving, but still need full pump performance for all out racing

Please Note:
- Fuel Lines and Hose-Ends Sold Separately
- For Continuous Duty/Racing Applications, please see P/N: AER17316
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications

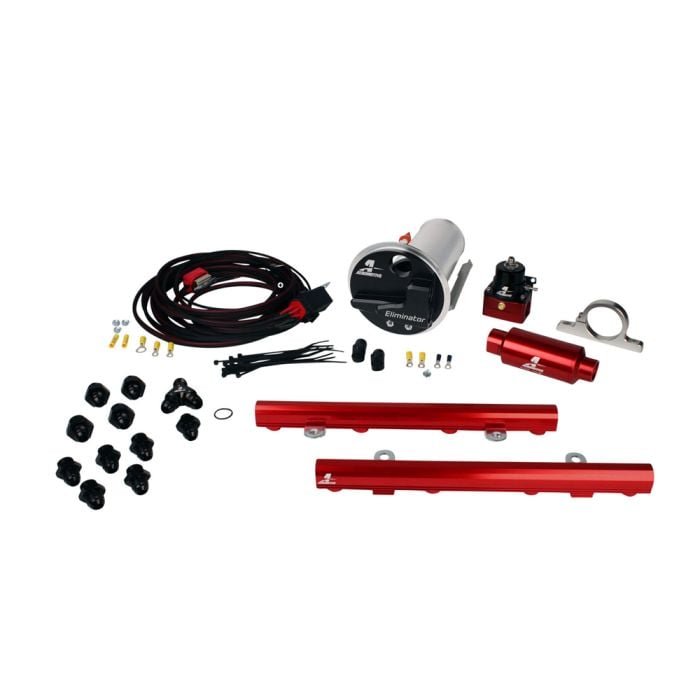

This Kit Includes:
- (1) Set of 5.0L Fuel Rails
- (1) Fuel Pressure Regulator
- (1) Fuel Pump Assembly
- (1) Fuel Pump Speed Controller
- (1) Filter Bracket
- (1) Filter Assembly, 40-Micron
- (1) One-Way Check Valve
- (6) ORB-08 to AN-08 Fittings
- (4) ORB-10 to AN-08 Fittings
- (1) ORB-06 to AN-08 Fitting
- (1) Y-Block, AN-08
- (1) OR002-2910 AN-10 O-Ring

Vehicle Fitment:
- 2007-2012 Shelby GT500

Tech Tip:
- All Aeromotive fittings and adapters are fully compatible with gasoline and alcohol-based fuels.

California Residents: Proposition 65 Warning

Note: This item is not CARB (California Air Resource Board) exempt and is not legal for sale or use in the state of California.

Installation Difficulty


Advanced skill is required for this installation.

Vehicle Fitment

This product will fit the following Mustang years:
