Aeromotive Street Fuel System Stealth With A1000 Fuel Pump And 4.6L 3V Fuel Rails Mustang Shelby GT500 2007-2012



  • Proudly Made in the USA!
  • Complete System
  • Billet High-Flow Fuel Railes
  • Billet EFI Pressure Regulator
MSRP $2,779.95
You save 10%

Aeromotive Stealth Street Fuel System with A1000 Fuel Pump and 4.6L 3V Fuel Rails for all 2007, 2008, 2009, 2010, 2011 and 2012 Shelby GT500 Mustangs.

Does your 2007-2012 Shelby GT500 Mustang need a brand new fuel system? If so, this Aeromotive Stealth Race Fuel System with A1000 Fuel Pump and 4.6L 3V Fuel Rails (17311) from CJ Pony Parts comes with every single piece you need!

Features and Benefits:
- Rated for EFI engines producing up to 1,000 Flywheel HP Forced Induction or 1,300 Flywheel HP Naturally Aspirated
- For Mustang Shelby GT500s equipped with a 4.6L 3V GT engine and/or equivalent intake
- Includes Aeromotive’s HD Fuel Pump Wiring Kit for limited duty racing applications
- Not legal for sale or use on emission-controlled vehicles except as a direct replacement part matching OEM specifications
- Billet High-Flow Fuel Rails
- Billet EFI Pressure Regulator
- One Piece CNC Y-block
- High Flow Filter
- Made in the USA

This Stealth Race Fuel System is made by Aeromotive with the Aeromotive Stealth A1000 fuel pump that will easily fit inside the stock OEM fuel tank while integrating with the stock fuel-level sending unit and jet-siphon transfer pump. This system is only legal for sale or use on emission-controlled vehicles when used as a direct fit replacement part that matches OEM specifications. It comes with all necessary fuel system hard-parts, including Stealth in-tank fuel pump, a 40-micron high flow filter, a one-piece CNC Y-block, billet high-flow fuel railes, a billet EFI pressure regulator, and all necessary Aeromotive high-flow ORB port fittings. It also provides electrical supply to the fuel pump using a fuel pump speed controller that keeps fuel cool in any vehicle that sees extended street driving but still requires full pump performance for racing applications. This fuel system (17311) is proudly made in the USA!

Additional Notes:
- Fuel Lines and Hose-Ends Sold Separately
- For Continuous Duty/Racing Applications, please see P/N: AER17310

Tech Tip: All Aeromotive fittings and adapters are fully compatible with gasoline and alcohol-based fuels.

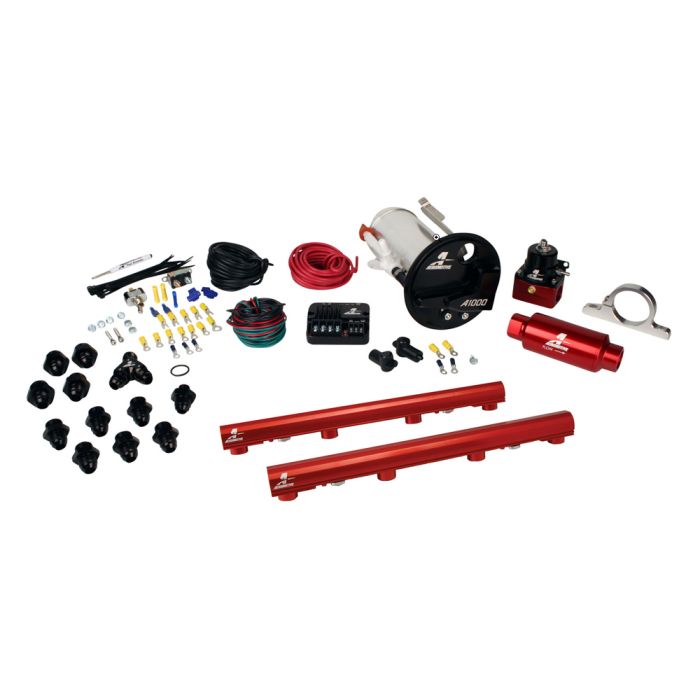

Kit Includes:
- (1) Set of 4.6L Fuel Rails
- (1) Fuel Pressure Regulator
- (1) Fuel Pump Assembly
- (1) Fuel Pump Speed Controller
- (1) Filter Bracket
- (1) Filter Assembly, 40-Micron
- (1) One-Way Check Valve
- (6) ORB-08 to AN-08 Fittings
- (4) ORB-10 to AN-08 Fittings
- (1) ORB-06 to AN-08 Fitting
- (1) Y-Block, AN-08
- (1) OR002-2910 AN-10 O-Ring

Vehicle Fitment:
- 2007-2012 Shelby GT500

California Residents: Proposition 65 Warning

Note: This item is not CARB (California Air Resource Board) exempt and is not legal for sale or use in the state of California.

Installation Difficulty


Advanced skill is required for this installation.

Vehicle Fitment

This product will fit the following Mustang years:
