Aeromotive Fuel System Street Stealth A1000 With 5.0 Rails Mustang GT500 2007-2012

Aeromotive's Stealth Street Fuel System (17317) keeps fuel cool in cars that see extended street driving but still need full pump performance for occasional all-out racing. Among other components, the system consists of the A1000 Fuel Pump and 5.0L Fuel Rails for 2007-2012 GT500 Mustangs with a 5.0L 4V Coyote engine and/or equivalent intake. The system is rated for EFI engines producing up to 1,000 Flywheel HP Forced Induction or 1,300 Flywheel HP Naturally Aspirated.

Features and Benefits:
- HD Fuel Pump Wiring Kit for Limited Duty Racing
- Billet High-Flow Fuel Rails
- Billet EFI Pressure Regulator
- One-Piece CNC Y-Block
- High-Flow Filter
- Proudly Manufactured in the USA

The system's A1000 fuel pump conveniently fits right inside the stock, OEM Mustang tank, integrating with the stock fuel-level sending unit and jet-siphon transfer pump. Along with the in-tank fuel pump, you'll also receive the fuel pump electrical supply and fuel pump speed controller. The HD fuel pump wiring kit will be perfect for limited duty racing applications.

You'll be impressed with these high-quality, American-made hard-parts, which also include a 40-micron high-flow filter, one-piece CNC Y-block, billet high-flow fuel rails, billet EFI pressure regulator and all necessary Aeromotive high-flow, ORB Port Fittings.

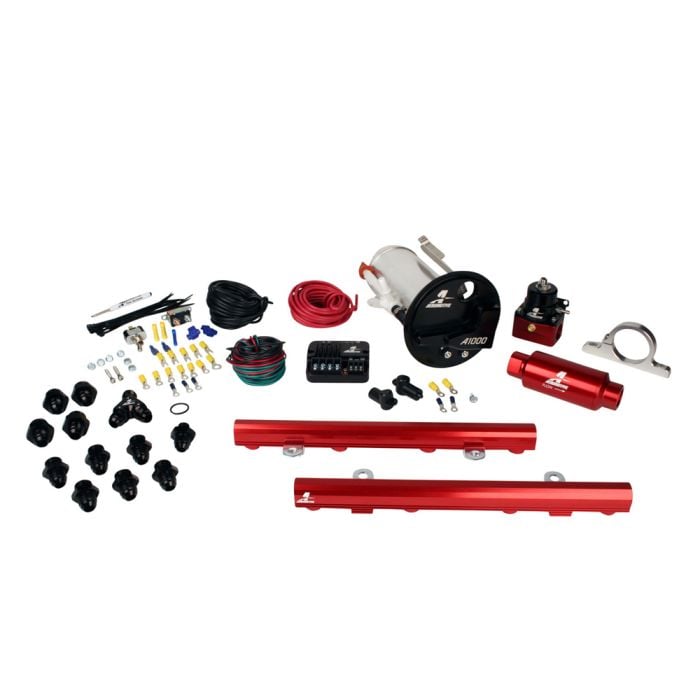

System Includes:
- (1) Set of 5.0L Fuel Rails
- (1) Fuel Pressure Regulator
- (1) Fuel Pump Assembly
- (1) Fuel Pump Speed Controller
- (1) Filter Bracket
- (1) Filter Assembly, 40-Micron
- (1) One-Way Check Valve
- (6) ORB-08 to AN-08 Fittings
- (4) ORB-10 to AN-08 Fittings
- (1) ORB-06 to AN-08 Fitting
- (1) Y-Block, AN-08
- (1) OR002-2910 AN-10 O-Ring

Vehicle Fitment:
- 2007-2012 GT500s Equipped with a 5.0L 4V Coyote Engine and/or Equivalent Intake

Tech Tip: All Aeromotive fittings and adapters are fully compatible with gasoline and alcohol-based fuels.

Additional Notes:
- Fuel Lines and Hose-Ends Sold Separately.
- For Continuous Duty/Racing Applications, please see P/N: AER17316.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
