BBK Fuel System Kit High-Flow With 155LPH In-Tank Electric Fuel Pump Mustang 5.0L 1986-1993

CJ's Part Number:


  • Supports 420 Flywheel HP
  • High-Flow Aluminum Fuel Rail
  • 155LPH In-Tank Fuel Pump
  • Made in the USA
MSRP $649.96
You save 14%

BBK High-Flow Fuel System Kit with 155LPH In-Tank Electric Fuel Pump for 1986, 1987, 1988, 1989, 1990, 1991, 1992 and 1993 5.0L Mustangs.

BBK's High-Flow Fuel System Kit is an excellent fuel upgrade to your bolt-on Fox Body. Proper fuel support to your 5.0L engine is achieved thanks to a 155LPH In-Tank Electric Fuel Pump, High-Flow Fuel Rail, Fuel Pressure Regulator, Fuel Pressure Gauge and the necessary mounting hardware to get the job done. These American-made components will help eliminate your 1986-1993 Mustang's fuel restrictions.

Features and Benefits:
- High-Flow CNC Machined Fuel Rails
- Kit Helps Eliminate Fuel Restrictions
- Fuel Pressure Regulator with Leak-Free Diaphragm
- Adjustable Fuel Pressure to 65psi
- Liquid Filled Fuel Pressure Gauge to 60psi
- 155 LPH High-Volume Fuel Flow
- Rated to Support 420 Flywheel Horsepower
- In-Tank Fuel Pump
- Proudly Manufactured in the USA!

This system's fuel rail is CNC-machined from billet aluminum and is designed to deliver higher flow than the stock counterpart. The 155lph (Liters Per Hour) In-Tank Fuel Pump is rated to support 420 flywheel horsepower for your Fox Body Mustang.

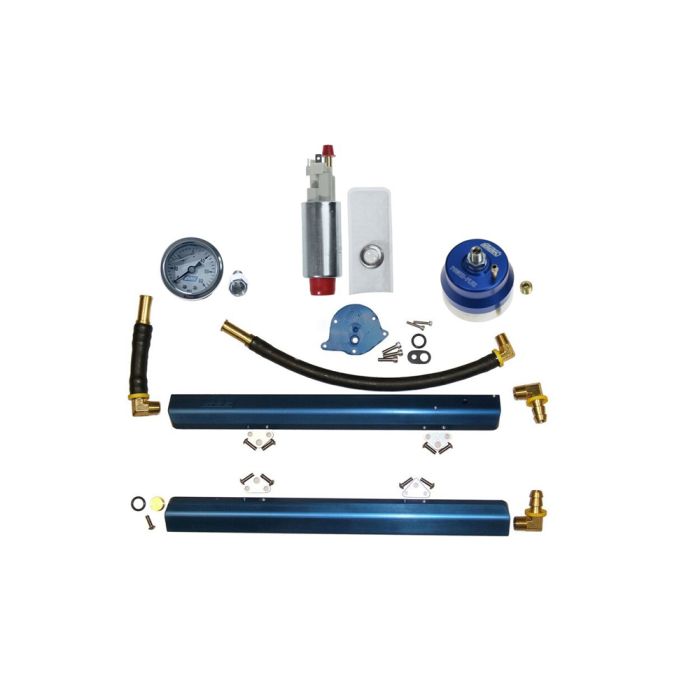

Kit Includes:
- BBK In-Tank Electric 155lph Fuel Pump (1527)
- BBK CNC Billet High-Flow Fuel Rail (5010)
- BBK Fuel Pressure Regulator (1706)
- BBK Fuel Pressure Gauge (1617)
- All Necessary Hardware
- Installation Instructions

The Adjustable Billet Fuel Pressure Regulator features a 1/8 NPT Fuel Pressure Gauge thread port and helps dial in the best fuel pressure for your setup. Meanwhile, an easy-to-read BBK Liquid Filled Fuel Pressure Gauge with adaptor reads from 0psi to 60psi. When combined, these components offer the desired results to support your 5.0L engine.

California Residents: Proposition 65 Warning

Note: This item is not CARB (California Air Resource Board) exempt and is not legal for sale or use in the state of California.
