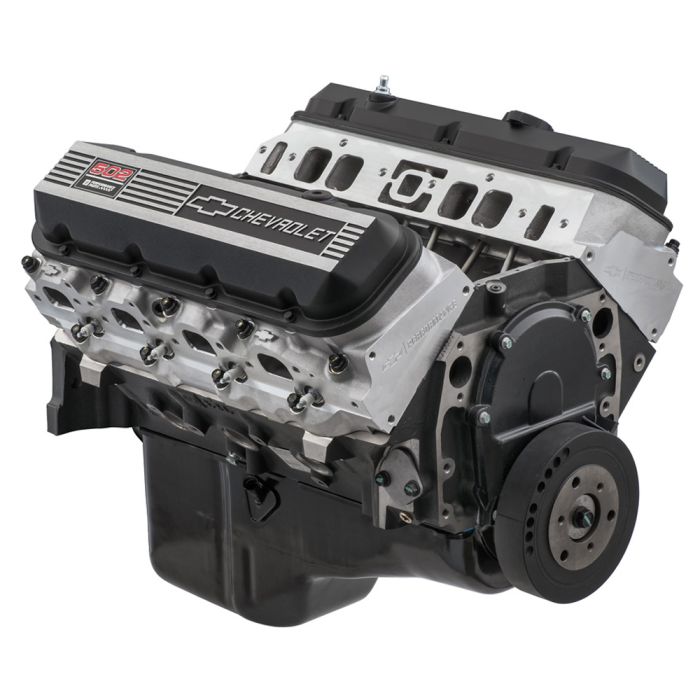

Chevrolet Performance 502 C.I. Base Big-Block Crate Engine 508 HP
Highlights
- 508 Horsepower Rating
- 580 Lb-Ft Torque Potential
- Aluminum Oval Port Heads
- Forged Rotating Assembly
Chevrolet Performance 502 C.I. 508 HP Base Big-Block Crate Engine.
The Chevrolet Performance 502 C.I. base crate engine (19433160) provides a strong big-block foundation for builders who want proven performance with the flexibility to choose their own induction and ignition components. It's rated at 508 horsepower and 580 lb.-ft. of torque when equipped with an aluminum intake and 870-cfm carburetor. It also delivers broad torque that exceeds 500 lb.-ft. from roughly 2,500 to 5,000 rpm. A cast-iron 4-bolt main block paired with a forged steel crankshaft, forged rods, and forged pistons creates a durable bottom end built to handle sustained street or strip use. High-flow aluminum oval-port cylinder heads and a hydraulic roller camshaft support strong airflow and dependable valvetrain operation.
Features and Benefits:
- Engine Type: Chevy Big-Block V8
- Displacement (cu in): 502
- Bore x Stroke (in): 4.470” x 4.000”
- Block: Cast-iron with 4-bolt main caps
- Crankshaft: Forged steel
- Connecting Rods: Forged steel, shot peened
- Pistons: Forged aluminum
- Camshaft Type: Hydraulic roller
- Camshaft Lift (in): .527” intake / .544” exhaust
- Camshaft Duration (@.050 in): 224 degrees intake / 234 degrees exhaust
- Cylinder Heads: Aluminum oval port, 110cc chambers
- Valve Size (in): 2.250” intake / 1.880” exhaust
- Compression Ratio: 9.6:1
- Rocker Arms: Stamped steel
- Rocker Arm Ratio: 1.7:1
- Recommended Fuel: Premium pump gasoline
- Ignition Timing: 32 degrees total at 4,000 rpm
- Maximum Recommended RPM: 5,800
- Balanced: External
- Flexplate: 14”
Additional Notes:
- Clutch linkage bosses are drilled and tapped. When using cast-iron exhaust manifolds, lower head bolts may require shorter-head bolts for clearance.
- Equipped with mechanical fuel pump boss and fuel pump lobe.
- Includes externally balanced 14” automatic transmission flexplate. For manual transmission applications, use a flywheel and 11” clutch assembly.
- Not intended for marine applications.
Vehicle Fitment:
- 1960-1987 Chevy/GMC C10
- 1988-1998 Chevy C/K
*Designed for pre-1976 street vehicles or off-road use only.
California Residents: Proposition 65 Warning
Related Categories: C10 Crate Engines & Cylinder Blocks, C/K Engine
Only for use on pre-pollution controlled vehicles: This product can be used on vehicles that were manufactured before emissions control regulations were imposed. Pre-pollution vehicles are defined as:
- 1965 and older U.S. manufactured California certified vehicles
- 1967 and older U.S. manufactured federally certified vehicles
