Chevrolet Performance 502 C.I. Truck Replacement Crate Engine 406HP
Highlights
- 502 Cubic Inch Big Block
- 406 Horsepower Output
- 541 lb-ft Truck Torque
- Hydraulic Roller Camshaft
Chevrolet Performance 502 C.I. 406HP Truck Replacement Crate Engine.

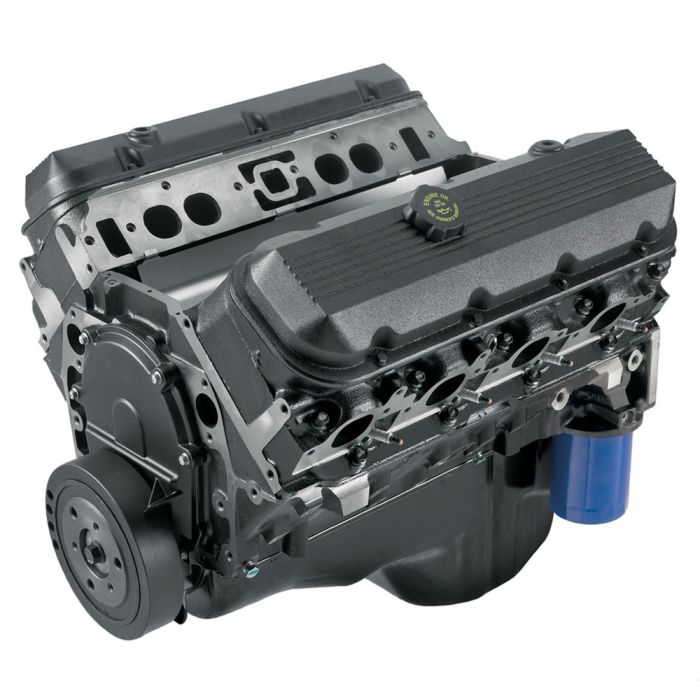

The Chevrolet Performance HT502 crate engine (19433156) delivers 406 horsepower and 541 lb.-ft. of torque in a durable big-block package built specifically for hardworking trucks. This 502 C.I. engine provides more pulling power and reliability than a stock rebuild while remaining compatible with regular pump fuel thanks to its 8.75:1 compression ratio. A cast-iron 4-bolt main block and all-forged rotating assembly provide the strength needed for towing and heavy use. The hydraulic roller cam keeps maintenance low while delivering strong low- and mid-range torque where trucks need it most. This engine arrives with cylinder heads and balancer installed, allowing you to finish it with your choice of induction and accessories.
Features and Benefits:
- Engine Type: Chevy Big-Block V8
- Displacement (cu in): 502
- Bore x Stroke (in): 4.470" x 4.000"
- Block: Cast-iron with 4-bolt main caps
- Crankshaft: Forged steel
- Connecting Rods: Forged steel, shot peened
- Pistons: Forged aluminum
- Camshaft Type: Hydraulic roller
- Camshaft Lift (in): 0.480" intake / 0.483" exhaust
- Camshaft Duration (@.050 in): 204 degrees intake / 209 degrees exhaust
- Cylinder Heads: Iron rectangular port, 118cc chambers
- Valve Size (in): 2.070" intake / 1.730" exhaust
- Compression Ratio: 8.75:1
- Rocker Arms: Stamped steel
- Rocker Arm Ratio: 1.7:1
- Flexplate: 14"
- Recommended Fuel: Regular pump gasoline
- Ignition Timing: 32 degrees total at 4,000 rpm
- Maximum Recommended RPM: 5,500
- Balanced: External
Additional Notes:
- Requires carburetor, fuel pump, starter, distributor, ignition system, and water pump (not included).
- Clutch linkage bosses are drilled and tapped. When using cast-iron exhaust manifolds, lower head bolts may require shorter-head bolts for clearance.
- Equipped with mechanical fuel pump boss and fuel pump lobe.
- Includes externally balanced 14" automatic transmission flexplate. For manual transmission applications, use a flywheel and 11" clutch assembly.
- Distributor with melonized steel gear must be used with steel camshaft applications.
- Not intended for marine applications.
- Designed for pre-1976 street vehicles or off-road use only.
Vehicle Fitment:
- 1960-1987 Chevy/GMC C10
- 1988-1998 Chevy C/K
*Only for use on pre-pollution controlled vehicles: Designed for pre-1976 street vehicles or any off-road vehicle.
California Residents: Proposition 65 Warning
Related Categories: C10 Crate Engines & Cylinder Blocks, C/K Engine
Only for use on pre-pollution controlled vehicles: This product can be used on vehicles that were manufactured before emissions control regulations were imposed. Pre-pollution vehicles are defined as:
- 1965 and older U.S. manufactured California certified vehicles
- 1967 and older U.S. manufactured federally certified vehicles
