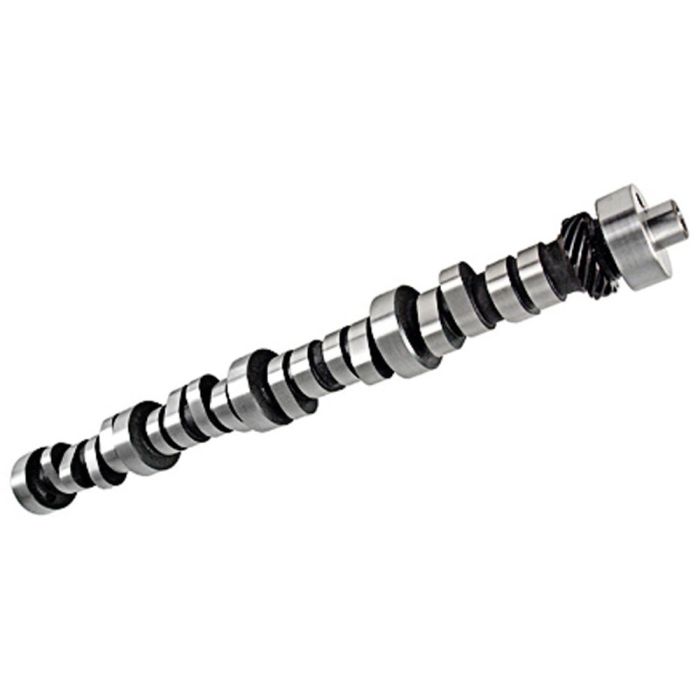

COMP Cams Camshaft Set Magnum 266HR 1200-5200 RPM for EFI Engines Mustang 5.0L 1985-1995

Available with camshaft only, camshaft and lifers, small kit or complete kit.

This hydraulic roller camshaft will fit Ford 5.0 Liter engines from 1985-2001.

Magnum cams generate great high RPM power. The can be used with mild ratio rocker arms and traditional performance valve springs as they are easy on valve train parts. These camshafts like compression ratios of 9.5:1 and higher. A torque converter and gear change is really needed. The larger Magnum cams are a little lazy at low RPMs.

If you don't want to replace the computer or injectors, this camshaft will work for you.

Specifications:
-RPM Range: 1200 to 5200
-Valve Timing: 0.006
-Lobe separation (degrees): 114
-Intake Centerline (degrees): 110
-Valve Lash: Hydraulic
-Duration: Intake 266/ Exhaust 270
-Duration @ .050" Lift: Intake 210/ Exhaust 215
-Valve Lift: Intake 0.533/ Exhaust 0.533
-Lobe Lift: Intake 0.334/ Exhaust 0.333

Options Include:
-Camshaft (353088) Only
-Camshaft (353088) and Lifters (LIFTER1)
-Small Kit - Camshaft (353088), Lifters (LIFTER1), Timing Chain Set (2138) and Assembly Lube
-Complete Kit - Everything in Small Kit Plus Valve Springs (98616), Valve Spring Retainers (74016), Locks (61116), and Valve Stem Seals (50316)
