COMP Cams Camshaft Set Nitrous HP NX274HR 2200-6200 RPM for Nitrous Injected Engines 5.0L 1985-1995

CJ's Part Number:
Only %1 left

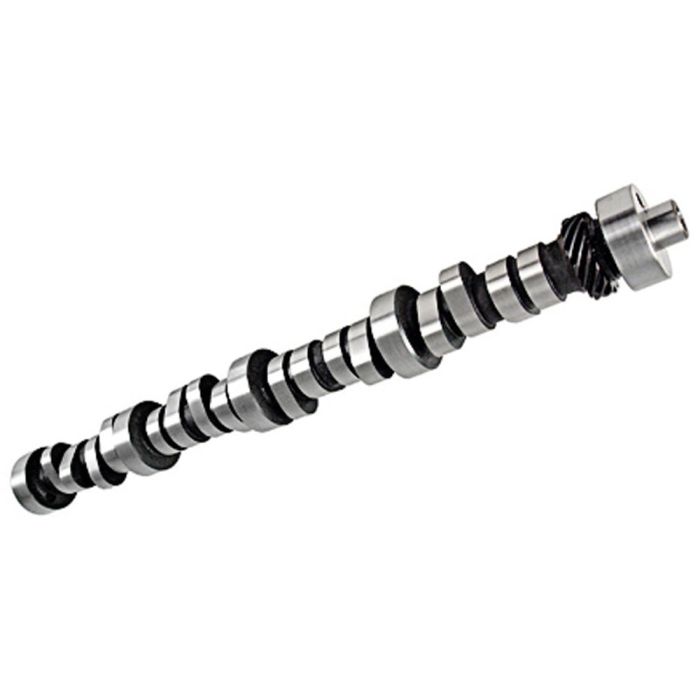

COMP Cams Nitrous HP NX274HR Camshaft Set with a 2200-6200 RPM Range for 1985-1995 Mustangs with Nitrous Injected 5.0L Engines.

Available with camshaft only, camshaft and lifers, small kit or complete kit.

This hydraulic roller camshaft will fit Ford 5.0 Liter engines from 1985-2001.

The Nitrous HP family differs from the base XE series by use of a wider lobe separation and added exhaust duration. This shifts the power to higher RPMs where it can be used in nitrous applications. Early exhaust opening helps scavenge the extra spent gasses out from nitrous or forced induction engines. Some torque and responsiveness is sacrificed compared to the base XE family. This is for improved performance with nitrous oxide. COMP Cams roller rockers and matched valve springs work best with Nitrous HP camshafts.

Street/strip applications with a 100-175HP nitrous kit or medium blower will benefit from this camshaft. The engine will generate a rough idle.

-RPM Range: 2200 to 6200
-Valve Timing: 0.006
-Lobe separation (degrees): 114
-Intake Centerline (degrees): 110
-Valve Lash: Hydraulic
-Duration: Intake 274/ Exhaust 286
-Duration @ .050" Lift: Intake 224/ Exhaust 236
-Valve Lift: Intake 0.555/ Exhaust 0.57
-Lobe Lift: Intake 0.348/ Exhaust 0.357

Options Include:
-Camshaft (355568) Only
-Camshaft (355568) and Lifters (LIFTER1)
-Small Kit - Camshaft (355568), Lifters (LIFTER1), Timing Chain Set (2138) and Assembly Lube
-Complete Kit - Everything in Small Kit Plus Valve Springs (98616), Valve Spring Retainers (74016), Locks (61116), and Valve Stem Seals (50316)

Related Categories: Mustang Engine, Mustang Camshafts & Valvetrain Components, Mustang 5.0L Camshafts 1985-1995

Vehicle Fitment

This product will fit the following Mustang years:
