Maximum Motorsports K-Member Kit With 10” 325LB Springs Koni Struts Mustang 1996-2004

Maximum Motorsports:
MMKMP-26 325-10

Highlights

  • Improved Suspension Geometry
  • Adjustable Ride Height
  • USA Made
  • Black Powder Coated Finish
$2,040.71

Maximum Motorsports K-Member Kit With 10” 325LB Springs for 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003 and 2004 Mustangs with Koni Struts.

This Maximum Motorsports (MMKMP-26 325-10) K-Member Kit With 10” 325LB Springs was created to completely replace all the factory suspension components on the front end of your 1996-2004 Mustang. The K-Member package will improve suspension geometry while also reducing the front end weight (40lbs.-Plus Over Stock Components). The Factory Front Suspension Components are heavy and were not setup for handling. All the Maximum Motorsports Parts are proudly manufactured in the USA!

This K-member is 26% lighter than the factory K-Member found on your 1996-2004 Mustang. The Maximum Motorsports K-member is constructed from high quality tubular steel. The motor mounts on the K-member are in the factory location but also include additional locations so you can move the engine rearward by 1”. The Front Lower Control Arm Mounts are shifted 0.75” straight forward, this will increase positive caster and moves the center of gravity slightly rearward for improved weight distribution. The stiff K-Member design will prevent flexing, which will improve steering response and handling.

The Maximum Motorsports Front Lower Control Arms are constructed from 1.25 DOM Steel Tubing that is configured in a A-Arm design, this will provide greater rigidity than the standard V control arms. Maximum Motorsports gussets the critical areas preventing fracturing. Maximum Motorsports assembles the control arms with OEM low-friction ball joints. The Front Lower Control Arms will improve steering response and enjoy better control of dynamic alignment through less deflection with Urethane pivot bushings. The Non-Offset Front Lower Control Arms will keep the front wheels in the factory location.

The Front Coilover Kit includes Threaded Sleeves that will only work on the Koni Front Struts. The Maximum Motorsports Coilover Kit comes with 10” Springs with a Spring Rate of 325lbs. The 10" 325lb Springs are great for Mustangs that see heavy street and entry-level performance handling at the track. This kit allows you to adjust the ride height so you can dial in your stance easily with the included tool. Maximum Motorsports includes all the necessary components to completely install Front Coil Overs on your 1996-2004 Mustangs.

Features and Benefits:
- Fits 1996-2004 Mustangs
- Improved Suspension Geometry
- Adjustable Ride Height
- Proudly Manufactured in the USA!
- Black Powder Coated Finish
- Weight Savings (40lbs.-Plus Over Stock Components)
- Includes Coil Over Conversion Kit for use with Koni Struts
- High Quality Maximum Motorsports Engineering

Please Note: The Koni Struts are NOT included with this Maximum Motorsports K-Member Package (KONI17).

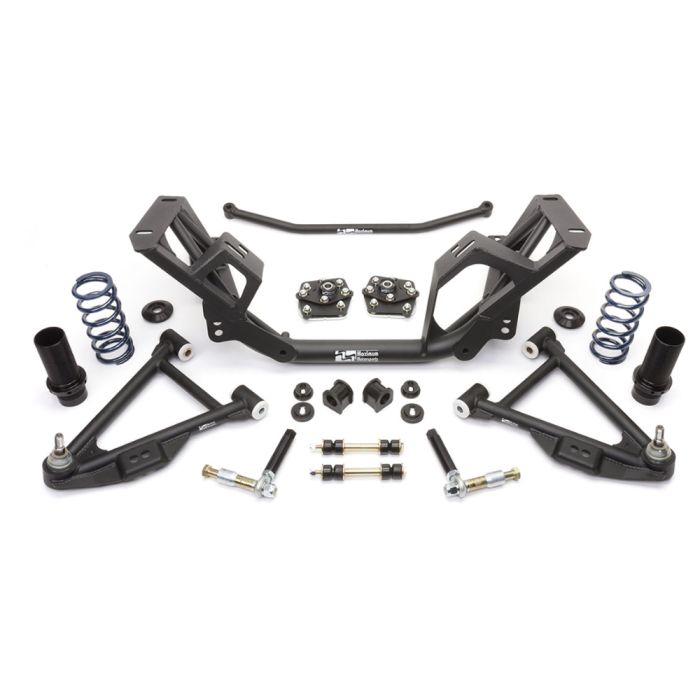

Kit Includes:
- K-Member
- K-Member 2-Point Brace
- Non-Offset Front Lower Control Arms
- Bumpsteer Kit
- Caster Camber Plates
- Aluminum Steering Rack Bushings
- Short Sway Bar End Links
- Urethane Sway Bar Bushings
- Coilover Kit (10-Inch Springs with a 325lbs. Spring Rate) (For use with Koni Struts)

Vehicle Fitment:
- 1996-2004 Mustang

ATTENTION: Due to increased demand for this hand built product, this part may take up to eight weeks for shipment.

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following Mustang years:
