Maximum Motorsports Roll Bar 6-Point With Swing-Out Door Bars Without Harness Mount Mustang Coupe/ Hatchback 1979-1993
Highlights
- 1-3/4" Diameter Tubing
- 0.134" Wall Dom Tube
- 6" X 6" Mounting Pads
- Made in the USA
Maximum Motorsports 6-Point Roll Bar with Removable Swing-Out Door Bars and without a Harness Mount for 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992 and 1993 Coupe and Hatchback Mustangs.

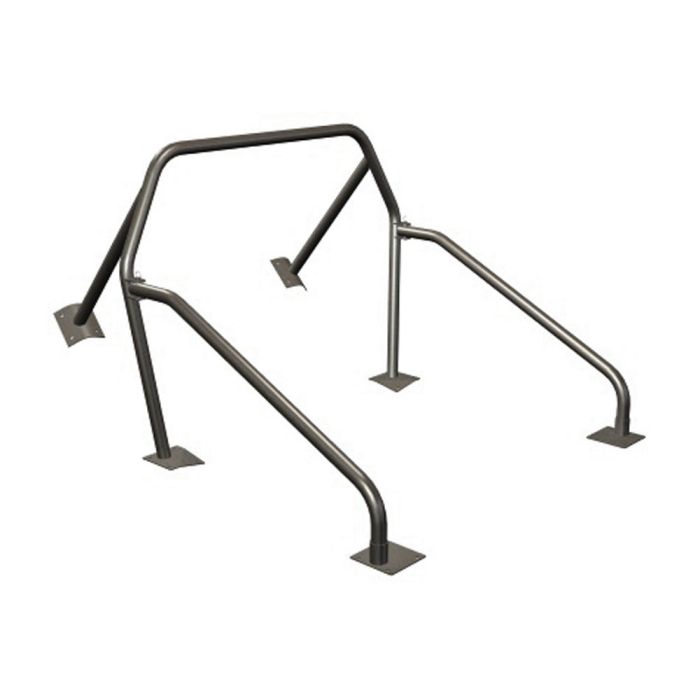

This 6-Point Roll Bar (MMRB-1.7) from Maximum Motorsports is designed to fit the stock interior of your 1979-1993 Coupe or Hatchback Mustang. It increases the rigidity of your Mustang's chassis and includes removable swing-out style door bars to increase side-impact safety. Removable swing-out door bars pivot outward, parallel with the doors, for easy entry. They can also be completely removed from the car in a matter of seconds!
Maximum Motorsports manufactures all their Roll Bars from the highest quality materials and hardware. They are made of 1-3/4" diameter by 0.134" wall DOM tube (much stronger than the more commonly used 0.120" wall ERW seamed tubing). Contour-hugging 6" x 6" mounting pads with backup plates sandwich the unibody for safe and strong mounting. All hardware is Grade 5 or higher.
Features and Benefits:
- Swing-Out Style Door Bars
- Stiffens Chassis
- Grade 5 or Higher Hardware
- Increases Side-Impact Safety
- 1-3/4" Diameter by 0.134" Wall DOM Tube
The Maximum Motorsports Roll Bars are designed to bolt to the chassis, without welding. The floor pan is sandwiched between the roll bar mounting pads and the back-up plates underneath the floor pan. There is a significant clamping force between the two pads, providing a very secure method of attachment. Although the roll bar does not weld to the chassis you will need to weld the rear supports to the main hoop.
All of Maximum Motorsports roll bars are uncoated, bare steel. For a high-quality finish, the installer should paint or powder coat the roll bar as part of the installation. Roll bars should have padding wherever any part of an occupant's body may come into contact with the steel tubing. This includes hands, feet, arms, and legs, not just the occupants' heads.
Please Note: This roll bar does NOT conform to NHRA and NMRA rules.
ATTENTION: Due to increased demand for this hand-built product, this part may take up to eight weeks for shipment.
California Residents: Proposition 65 Warning
Related Categories: Mustang Parts, Mustang Interior, Mustang Roll Bars
Installation Difficulty
Advanced skill is required for this installation.
