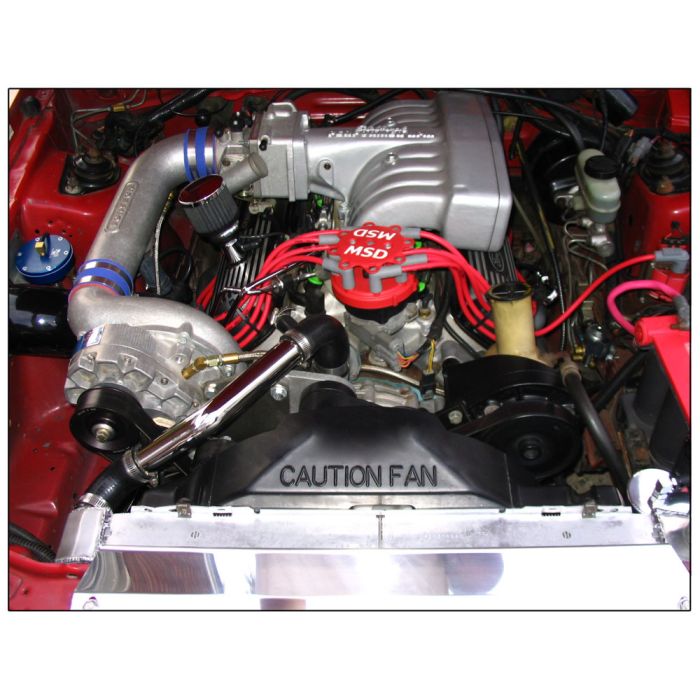

Vortech Supercharger Kit Satin 8Lb V-1 T-Trim 5.0L 1986-1993


Vortech Satin Finish 8LB V-1 T-Trim Supercharger Kit for all 1986, 1987, 1988, 1989, 1990, 1991, 1992 and 1993 Mustangs with 5.0 Liter Engines.

This 7-9 Lbs. of boost, V-1 T-Trim model supercharger kit is perfect for the 5.0L Mustang owner looking for all-out performance. This kit will increase your engines horsepower exponentially. The more modifications you have done to your car the more power you will gain. The T-Trim is a large supercharger that makes a great choice for heavily modified larger displacement engines (Stroker Engine). This kit is also 50-State Smog Legal.

Kit Includes:
- Aluminum and Steel Mounting Plates
- Aluminum 8-Rib Crankshaft Pulley
- Supercharger Head Unit
- T-Rex Fuel Pump Kit
- MSD Timing Ignition Box
- Inlet Elbow and Hose
- Plastic Filter Shield with Vortech Logo
- Aluminum Discharge Tube
- Bosch Blow Off Valve
- Supercharger Belt Tensioner with Pulley
- Supercharger 8-Rib Belt
- K&N Air Filter
- FMU Assembly with Fuel Lines
- Chrome Upper Radiator Hose Extension
- Alternator Stay Brace
- Inlet and Discharge Couplers with Clamps
- All required mounting hardware and fittings
- Instructions

Supercharger Technical Info
Head Unit Model Oil Lines Required? Noise Level Max CFM Peak Efficiency
V-1 T-Trim Yes Loud 1200 73 %
V-2 SQ Si-Trim Yes Quiet 1150 78 %
V-3 SL Si-Trim No Quiet 1150 78 %
V-2 SQ SCi-Trim Yes Quiet 1050 75 %
V-3 SL SCi-Trim No Quiet 1050 75 %

Order this Vortech Satin Finish 8LB V-1 T-Trim Supercharger Kit for your 1986, 1987, 1988, 1989, 1990, 1991, 1992 or 1993 Mustang with 5.0 Liter Engine today from CJ Pony Parts.

California Residents: Proposition 65 Warning

This item is 50-state legal (CARB E.O. Number D-213-17)

Installation Difficulty


Advanced skill is required for this installation.

Vehicle Fitment

This product will fit the following Mustang years:
