COMP Cams Xtreme Energy XE284H Hydraulic Flat Tappet Camshaft Complete Kit with a 2300 to 6500 RPM Range for Mustangs with a 289 or 302 Engine.Available with camshaft only, camshaft and lifers, small kit or complete kit.
This hydraulic flat tappet camshaft will fit Ford 289 and 302 engines from 1963-1995.
Xtreme Energy camshafts are a best seller due to their excellent all-around performance in street applications. Increased responsiveness and more area under the curve are delivered due to quicker opening lobe profiles. More vacuum is created which allows a step up in duration for greater performance. COMP Cams roller rockers and matched valve springs work best with this camshaft. Other performance parts are recommended (intake manifold, headers, etc.) for best performance.
The Xtreme Energy XE284H camshaft is perfect for Street/Strip applications equipped with a 2800+ stall torque converter, headers and gears. This camshaft produces a rough idle.
- RPM Range: 2300 to 6500
- Valve Timing: 0.006
- Lobe separation (degrees): 110
- Intake Centerline (degrees): 106
- Valve Lash: Hydraulic
- Duration: Intake 284/Exhaust 296
- Duration @ .050" Lift: Intake 240/Exhaust 246
- Valve Lift: Intake 0.541/Exhaust 0.544
- Lobe Lift: Intake 0.339/Exhaust 0.341
- Camshaft (312504) Only
- Camshaft (312504) and Lifters

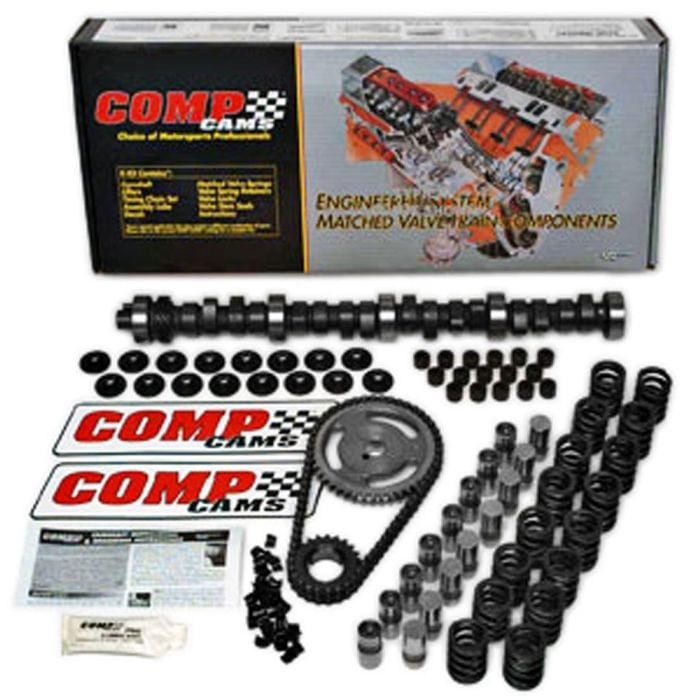

- Small Kit - Camshaft (312504), Lifters, Timing Chain Set and Assembly Lube
- Complete Kit - Everything in Small Kit plus Valve Springs, Valve Spring Retainers, Valve Locks and Valve Stem Seals
