Aeromotive EFI A1000 Race Fuel System Kit Stealth With 5.4L GT500 Fuel Rails GT 2011-2017

Aeromotive:
17320

Highlights

  • Race Applications
  • Made in US
  • All Inclusive Kit
  • Billet High Flow Fuel Rail
$2,296.56

Aeromotive Stealth EFI A1000 Race Fuel System Kit With 5.4L GT500 Fuel Rails for 2011, 2012, 2013, 2014, 2015, 2016 and 2017 GT Mustangs.

If you're in need of a supercharged fuel system for your GT500 swapped S197, look no further. This Aeromotive Stealth EFI A1000 Race Fuel System Kit 17320 With 5.4L GT500 Fuel Rails for 2011-2017 GT Mustang conveniently includes all the hardware necessary for your racecar project, including a fuel pump electrical supply with HD fuel pump wiring kit.

In the Fuel Pump Electrical Supply is the innovative HD Fuel Pump Wiring Kit specialized for racing applications. The fuel system includes the Stealth A1000 fuel pump fitted for the OEM Mustang tank and is designed to assimilate with the stock fuel-level sending unit and jet-siphon transfer pump. Other components include the modern Stealth In-Tank Fuel Pump, 40-micron High Flow Filter, One-Piece CNC Y-block,  Billet EFI Pressure Regulator and all necessary Aeromotive high flow, O-Ring Boss Port Fittings and Billet High-Flow GT500 Fuel Rails that are built to last.

Features and Benefits:
- Convenient, All-Inclusive Kit
- Racing Application Durability
- Made in the US
- Rated for EFI engines producing up to 1,000 Flywheel HP Forced Induction or 1,300 Flywheel HP Naturally Aspirated on gas

Vehicle Fitment:
- 2011-2017 Mustang GT
- 5.4L Engine Swap to GT500 Supercharged 4V engine and/or equivalent intake

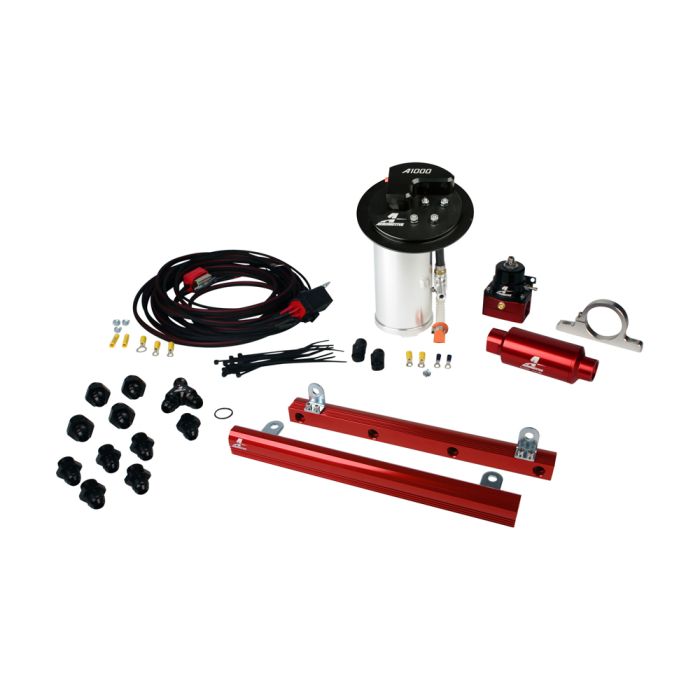

Kit Includes:
- (1) Set of 5.4L GT500 Fuel Rails
- (1) Fuel Pressure Regulator
- (1) Fuel Pump Assembly
- (1) Fuel Pump Wiring Kit
- (1) Filter Bracket
- (1) 40-micron Filter Assembly
- (1) One-Way Check Valve
- (6) ORB-08 to AN-08 Fittings
- (4) ORB-10 to AN-08 Fittings
- (1) ORB-06 to AN-08 Fitting
- (1) Y-Block, AN-08
- (1) OR002-2910 AN-10 O-Ring

Additional Notes:
- Fuel Lines and Hose-Ends Sold Separately.
- This item is not CARB (California Air Resource Board) exempt and is not legal for sale or use in the state of California.

Tech Tip: All Aeromotive fittings and adapters are fully compatible with gasoline and alcohol-based fuels.

*For Continuous Duty/Street Applications, please see P/N: AER17321.

California Residents: Proposition 65 Warning

Note: This item is not CARB (California Air Resource Board) exempt and is not legal for sale or use in the state of California.

Installation Difficulty

Difficult
Difficult

Advanced skill is required for this installation.

Vehicle Fitment

This product will fit the following Mustang years:
