Aeromotive Stealth EFI A1000 Race Fuel System Kit With 5.4L Cobra Jet Rails GT 2011-2017

Aeromotive:
17322

Highlights

  • Comprehensive Kit
  • Supports 1000+ Horsepower
  • High Performance Fuel Delivery
  • Great For Race Use
MSRP $2,071.70
$1,721.39
You save 17%

Aeromotive Stealth EFI A1000 Race Fuel System Kit With 5.4L Cobra Jet Rails for 2011, 2012, 2013, 2014, 2015, 2016 and 2017 GT Mustangs.

If you're building your Mustang to race, you need a race-ready fuel system! This Mustang Stealth Fuel System (17306) includes the Aeromotive Stealth A1000 fuel pump, which integrates with your stock Mustang tank, fuel-level sending unit, and jet-siphon transfer pump. It can handle over 1,000 horsepower for your track performance needs.

Features and Benefits:
- For 2011-2017 Mustang GTs with engine swap to 5.4L Cobra Jet Supercharged 4V engine and/or equivalent intake.
- Rated for EFI engines producing up to 1,000 Flywheel HP Forced Induction or 1,300 Flywheel HP Naturally Aspirated on gas.
- Includes Aeromotive’s HD Fuel Pump Wiring Kit for limited duty, racing applications.
- Made in the USA

Aeromotive provides all the fuel system hard-parts you’ll need, including the Stealth In-Tank Fuel Pump, 40-micron High Flow Filter, One-Piece CNC Y-block, Billet High-Flow Fuel Rails, Billet EFI Pressure Regulator and all necessary Aeromotive high flow, ORB Port Fittings. Fuel Pump Electrical Supply is also provided, including an HD Fuel Pump Wiring Kit for cars that will be primarily raced, with limited street driving.

Please Note:
- Fuel Lines and Hose-Ends Sold Separately
- For Continuous Duty/Street Applications, please see P/N: AER17323

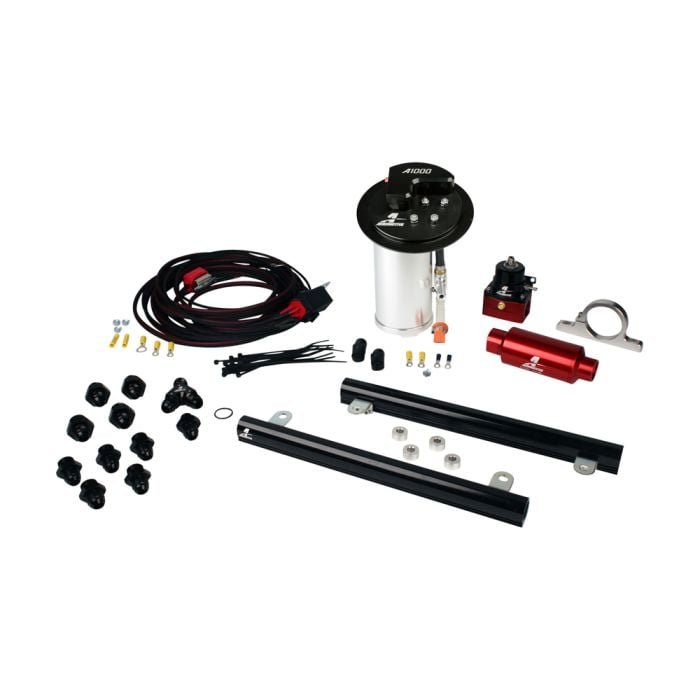

This Kit Contains:
- (1) Set of 5.4L Cobra Jet Fuel Rails
- (1) Fuel Pressure Regulator
- (1) Fuel Pump Assembly
- (1) Fuel Pump Wiring Kit
- (1) Filter Bracket
- (1) 40-micron Filter Assembly
- (1) One-Way Check Valve
- (6) ORB-08 to AN-08 Fittings
- (4) ORB-10 to AN-08 Fittings
- (1) ORB-06 to AN-08 Fitting
- (1) Y-Block, AN-08
- (1) OR002-2910 AN-10 O-Ring

Tech Tip: All Aeromotive fittings and adapters are fully compatible with gasoline and alcohol-based fuels.

California Residents: Proposition 65 Warning

Note: This item is not CARB (California Air Resource Board) exempt and is not legal for sale or use in the state of California.

Installation Difficulty

Difficult
Difficult

Advanced skill is required for this installation.

Vehicle Fitment

This product will fit the following Mustang years:
