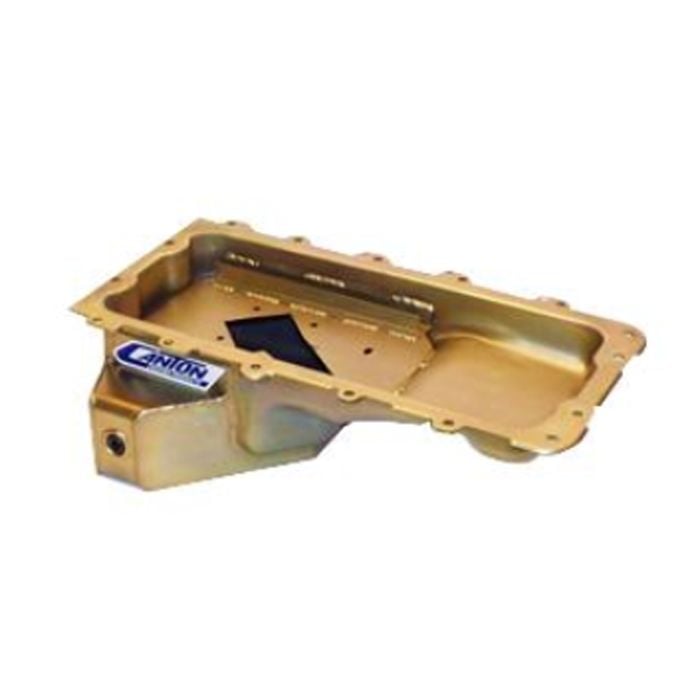

Canton Racing Products Road Race T-Sump Oil Pan Zinc Plated 4.6L/5.4L Mustang 1996-2012

The Canton Racing Products (15-784) Zinc Plated Road Race T-Sump Oil Pan is designed to be a performance upgrade for 1996-2012 Mustangs with a 4.6L or 5.4L Engine. The Canton Oil Pan is constructed from high quality steel that if fully welded with a T-sump bottom. Once the Oil Pan is fully constructed the Pan is Zinc Plated to eliminate corrosion. The Road Race Oil Pan has a Diamond Shape Road Race baffle assembly with four trap doors. The Four Trap Doors will direct the oil to the oil pickup under any condition. The Canton Road Race Oil Pan retains the Stock Pan Depth and increases capacity with its T-Style Rear Sump. Canton also includes a Magnetic Drain Plug to help collect the small metal debris in the oil. This Oil Pan will reuse the factory Pick up tube. This Canton Racing Products (15-784) Zinc Plated Road Race T-Sump Oil Pan is proudly made in the USA!

Features & Benefits:
- Fits 1996-2012 Mustangs
- 7-Quart System Capacity
- Uses OEM Pickup Tube
- Diamond Shape Road Race Baffle Assembly (Four Trap Doors)
- Removable Windage/Anti-Slosh Baffle
- Magnetic Drain Plug
- 1/2” NPT Temperature Bung
- Provision for Pan Mounted Dipstick
- Proudly Made in the USA!

Dimensions:
- Deep: 6-1/4”
- Wide: 12-3/4”
- Long: 9-1/4”
