COMP Cams Camshaft Set Xtreme Energy XE276HR 2200-6200 RPM 5.0L 1985-1995

CJ's Part Number:
Only %1 left

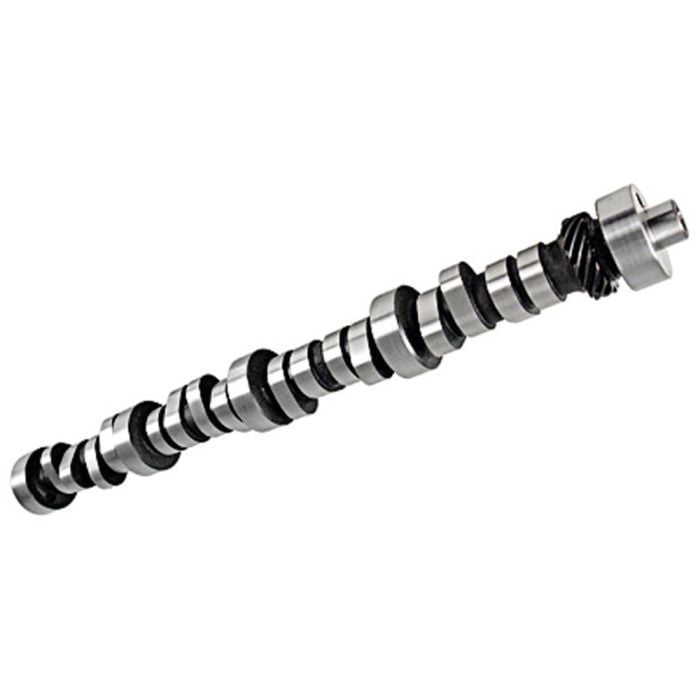

COMP Cams Xtreme Energy XE276HR Camshaft Set with a 2200 to 6200 RPM Range for 1985-1995 Mustangs with 5.0L Engines.

Available with camshaft only, camshaft and lifers, small kit or complete kit.

This hydraulic roller camshaft will fit Ford 5.0 Liter engines from 1985-2001.

A best seller due to its excellent all-around performance in street carbureted applications. Increased responsiveness and more area under the curve are delivered due to quicker opening lobe profiles. More vacuum is created which allows a step up in duration for greater performance. COMP Cams roller rockers and matched valve springs work best with this camshaft. Other performance parts are required (intake manifold, headers, etc.) for best performance.

Major modifications are needed to run this camshaft. For use with 1.7:1 rockers, 3.55 or lower gears, and a 2500 stall torque converter.

-RPM Range: 2200 to 6200
-Valve Timing: 0.006
-Lobe separation (degrees): 112
-Intake Centerline (degrees): 108
-Valve Lash: Hydraulic
-Duration: Intake 276/ Exhaust 282
-Duration @ .050" Lift: Intake 224/ Exhaust 230
-Valve Lift: Intake 0.544/ Exhaust 0.544
-Lobe Lift: Intake 0.321/ Exhaust 0.321

Options Include:
-Camshaft (353288) Only
-Camshaft (353288) and Lifters (LIFTER1)
-Small Kit - Camshaft (353288), Lifters (LIFTER1), Timing Chain Set (2138) and Assembly Lube
-Complete Kit - Everything in Small Kit Plus Valve Springs (98616), Valve Spring Retainers (74016), Locks (61116), and Valve Stem Seals (50316)

Vehicle Fitment

This product will fit the following Mustang years:
