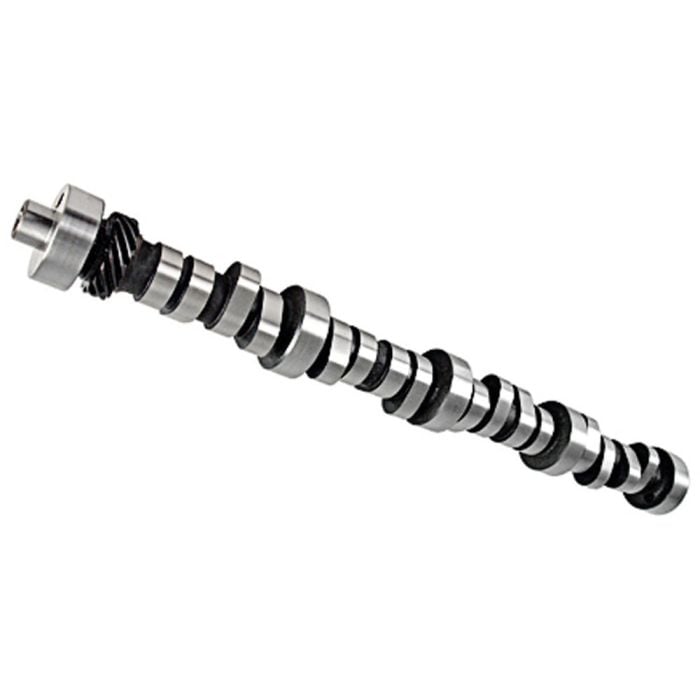

COMP Cams Camshaft XFI 248HR-14 Stroker 3200-6500 RPM for 347+ Cubic Inch Engines 1985-1995

COMP Cams:
35-776-8
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 139.47ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

Highlights

  • Xfi 248Hr-14 Stroker Camshaft
  • 3200 To 6500 RPM Range
  • 1985-1995 Mustangs
  • 347 Cubic Inch Engines
MSRP $366.64
$329.98
You save 10%

COMP Cams XFI 248HR-14 Stroker Camshaft with 3200 to 6500 RPM Range for all 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994 and 1995 Mustangs with 347 Cubic Inch Displacement Engines.

This hydraulic roller camshaft will fit Ford 5.0 Liter engines from 1985-2001.

These camshaft profiles feature the quickest lobe profiles in the Xtreme family and provide a terrific increase in performance. A wider lobe separation is featured without loss of responsiveness. Tuned for EFI applications where extra air flow signal through the carburetor is not required. High lift is featured and aftermarket cylinder heads work the best. The XFI camshafts are designed to be used with COMP Cams Beehive Springs and roller rockers. Other performance parts are needed for real power. Xtreme Energy Cams are better suited for carbureted applications.

This camshaft is for engines that are stroked to 347 Cubic Inches or larger. Serious horsepower and torque are gained in the mid and upper RPMs. Best used with aftermarket heads, intake manifold, throttle body and injectors. A 5-speed or 3500 stall torque converter works best. Computer mods are a must.

Specifications:
-RPM Range: 3200 to 6500
-Valve Timing: 0.006
-Lobe separation (degrees): 114
-Intake Centerline (degrees): 110
-Valve Lash: Hydraulic
-Duration: Intake 304/ Exhaust 314
-Duration @ .050" Lift: Intake 248/ Exhaust 258
-Valve Lift: Intake 0.608/ Exhaust 0.608
-Lobe Lift: Intake 0.38/ Exhaust 0.38

Order this COMP Cams 35-776-8 XFI 248HR-14 Stroker Camshaft with 3200 to 6500 RPM Range for all 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994 and 1995 Mustangs with 347 Cubic Inch Displacement Engines today from CJ Pony Parts.

Vehicle Fitment

This product will fit the following Mustang years:

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 3.85ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

Hi, does it work with stock 302 CI engine? I need replace camshaft but also it will be good if new camshaft will work with stroker in the future :)

Asked by: Rzr1
No, it needs to be larger than 347 CI to work.
Answered by: CJ Pony Parts
Date published: 2016-08-28
