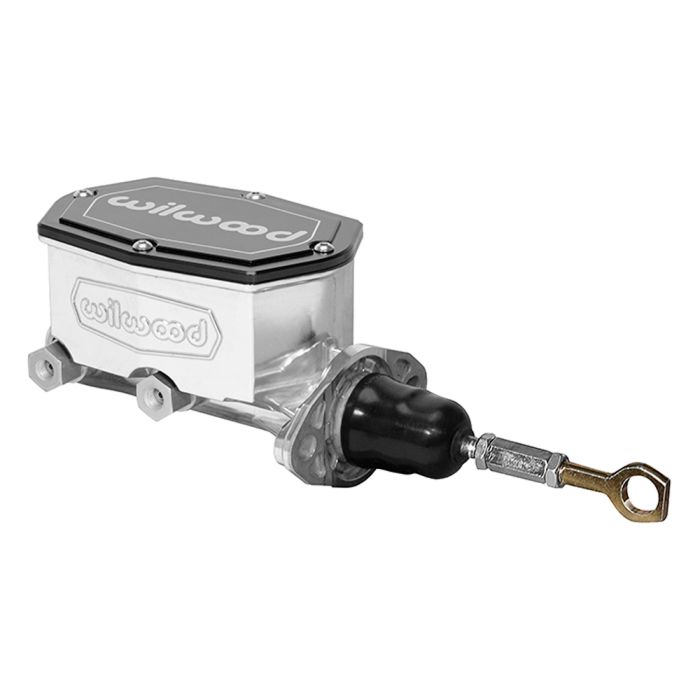

For your manual brake application, this Wilwood (260-15520-P) Polished 7/8” Bore Compact Master Cylinder comes with the proper pushrod for the OEM 1965-1973 brake pedal. This is meant to mount flanges from 3.22” to 3.4”, thus matching the 1965-1973 factory manual master cylinder mount. On either side of the master cylinder, there are fluid outlet ports.
Features & Benefits:
- Compact Design for Extra Clearance
- Aluminum Construction
- Polished Finish
- 7/8” Bore
- Made in the USA
This Wilwood (260-15520-P) Polished 7/8” Bore Compact Master Cylinder, with the stroke at 1.1”, has a volume ratio of 2:1 between the secondary and primary chambers. The master cylinder only weighs three pounds and is made from high-pressure die castings. The compact design was made to offer additional clearance. This master cylinder is proudly made in the USA!
