Aeromotive Fuel Filter 40 Micron ORB-10 Black

Aeromotive:
12330

Highlights

  • 200 to 3,000+ Horsepower
  • Black Anodized Finish
  • Cleanable Filter Element
  • CNC Machined Aluminum
$189.95

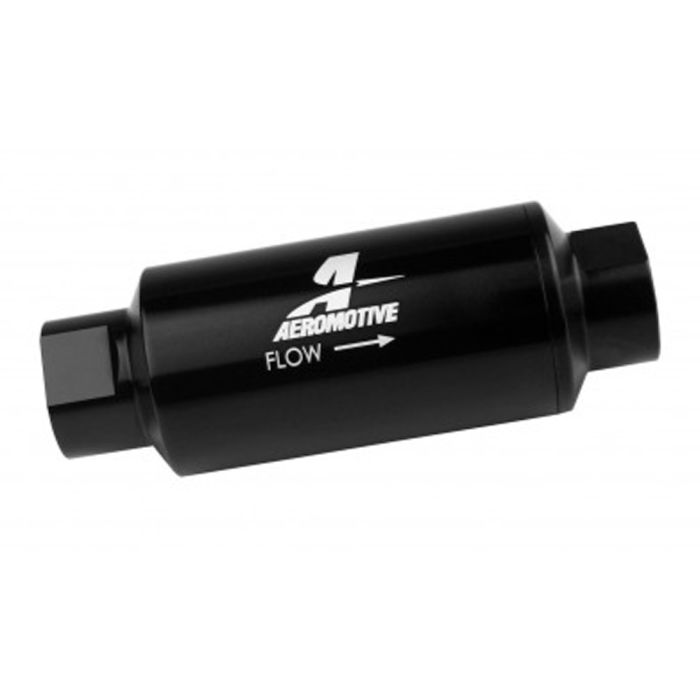

Aeromotive Black 40 Micron Fuel Filter with ORB-10 inlet/outlet ports.

This Aeromotive Fuel Filter (FG72) features a high-flow and totally rebuildable design. It is designed to be placed after an External Fuel Pump. The cleanable 40 Micron Filter is constructed from Stainless Steel Mesh, and will collect smaller pieces of debris in the fuel system. The housing comes apart for easy access to the filter.

Features and Benefits:
- High Flow, 40-Micron Stainless Steel Mesh Element (Cleanable)
- 200-3,000 Plus HP Applications
- Flows 2,000 lb/hr with a Pressure Drop of Less than 1 PSI
- ORB-10 Ports
- Includes O-Ring for Positive Sealing in High Pressure Applications
- Constructed from CNC-Machined 6061-T6 Aircraft Aluminum
- Bright Black Anodized Finish
- Proudly Made in the USA!

The Fuel Filter Body is constructed from CNC-Machined 6061-T6 Aircraft Aluminum. Once the Fuel Filter Body is fully constructed it is then finished in a Black Anodized Coating. On each end of the Filter Body an ORB-10 Fitting is installed so the customer can run a ORB-10 hose all the way to the Fuel Pressure Regulator. This Fuel Filter is proudly made in the USA!

Dimensions:
Length: 5-1/2”
Diameter: 2”

Vehicle Fitment:
1965-1985 Mustangs
1966-1977 Broncos
1960-1987 C10s
1948-1979 F100s

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following Bronco years:

This product will fit the following C10 years:

This product will fit the following F-100 years:
