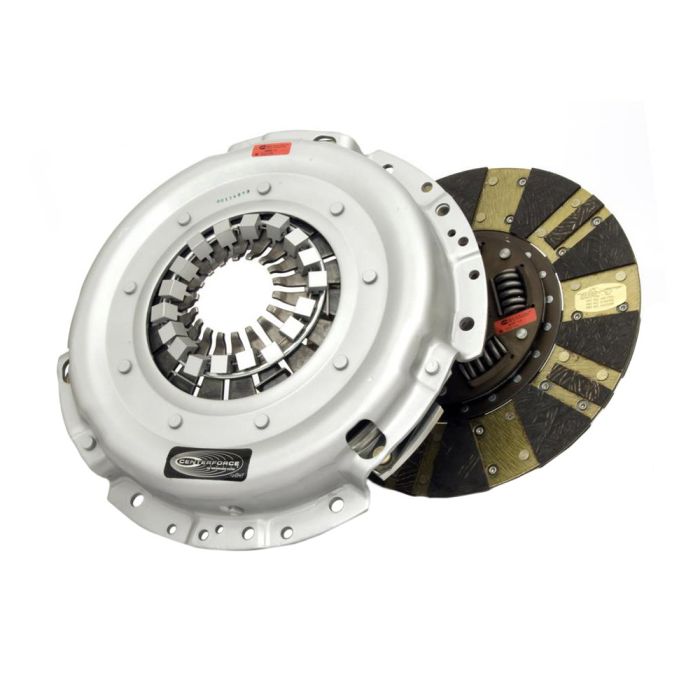

Centerforce Clutches Light Metal Clutch Pressure Plate/Single Disc 10.4” Set Mustang 26-Spline 5.0L 1979-1993/GT 1994-2001/Cobra 1993-1998
Highlights
- 1-1/16 x 26-Spline Input Shaft
- Torque Capacity of 713 Ft/Lbs
- Billet Aluminum Pressure Plate
- Disc W/Carbon Composite Lining
Centerforce Clutches Light Metal Clutch (LMC) 10.4” Pressure Plate and Single Disc Set for 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, and 1993 5.0L Ford Mustangs; 1993, 1994, 1995, 1996, 1997, and 1998 Cobra Mustangs; 1994, 1995, 1996, 1997, 1998, 1999, 2000, and 2001 GT Mustangs with 26-Spline Input Shafts.
Dominate the track with this SFI-approved Centerforce Clutches LMC 10.4” Pressure Plate and Single Disc Set for 1979-2001 Mustangs! Attached to a replaceable, heat-treated friction surface, the pressure plates are machined from robust and lightweight aluminum for ultimate longevity and weight savings. The disc has a segmented carbon composite lining to boost its cooling and torque capacity. Featuring a ball-bearing actuated diaphragm and a centrifugal weight system, this set provides racers with a comfortable feel at the pedal and a superior grip.
Features and Benefits:
- 1-1/16" x 26-Spline Input Shaft
- Holds Up To 713 ft/lbs of Torque At The Flywheel
- Sprung-Hub Disc w/ Dual-Segmented Carbon Composite Lining
- Lightweight yet Durable Billet Aluminum Pressure Plate
- Replaceable Heat-Treated Friction Surface Attached to Pressure Plate
- Offers Improved Cooling
- Ball-Bearing Actuated Diaphragm
- Centrifugal Weight System
- Provides a Controllable & Comfortable Clutch Pedal
- Fully SFI 1.1 Approved
- Perfect for Road Racing & Circle Track Applications
Includes:
- Aluminum Pressure Plate
- Clutch Disc
- Clutch Alignment Tool
Vehicle Fitment:
- 1979-1993 5.0L Mustang
- 1994-2001 GT Mustang
- 1993-1998 Cobra Mustang
Tech Tip: This product is for Mustangs equipped with T-45 from Tremec in factory US spec mustangs. In 2001, Ford made the Mustang GT available with two different transmissions. To find out which style transmission you have, check the data sticker located on the driver-side door jamb. A "K" means the car came with a TR3650 and a "6" indicates a T-45. This clutch kit works with the T-45.
Please Note: This clutch set is for Mustangs with a 26-spline input shaft. Please see CK488 if you have a 10-spline input shaft.
California Residents: Proposition 65 Warning
Related Categories: Mustang Parts, Mustang Transmission, Mustang Clutch Kits, Restomod Parts, Restomod Transmission
Installation Difficulty
Intermediate skill is required for this installation.
