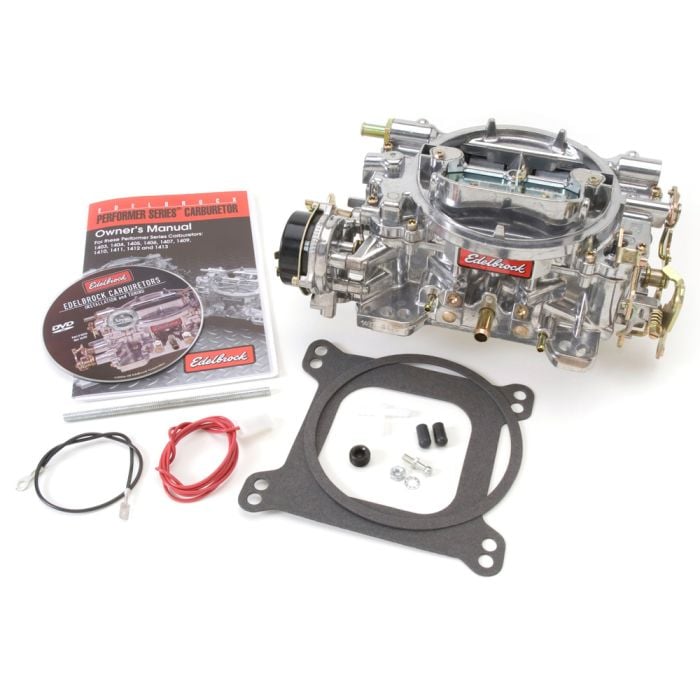

Edelbrock Carburetor Performer Remanufactured 600 CFM Satin Finish Non-EGR With Electric Choke

Edelbrock delivers the correct air-fuel ratio to your engine with their Satin Non-EGR Performer Carburetor (9906). This remanufactured masterpiece is precisely tuned for street performance and daily driving.

The Edelbrock Carburetor features a flow rate of 600 cubic feet per minute, and it will accept gasohol and blended fuels. The part includes an electric choke so you don't have to open the choke manually by hand each time.

Features and Benefits:
- Calibrated for Optimal Street Performance
- Uses Metering Rods to Transition Between Circuits
- Easily Change Metering Rods without Carburetor Removal
- Holds a Tune and Maintains Consistent Performance
- Compatible with Gasohol and Blended Fuels
- Remanufactured Carburetor with Satin Finish
- Tub-Type Bowls and Rear-Pivot Floats
- All-Aluminum Body Resists Warping

The all-aluminum, two-piece body is lightweight and resistant to warping. It can handle the challenges of daily driving, while consistently maintaining a tune. You'll certainly appreciate the predictable performance.

Specifications:
- Metering Rod Size: .075 x .047 in
- Gasket/Seal Included: Yes
- Barrel Quantity: Four Barrel
- Flange Type: Square Flange
- Primary Jet Diameter: 0.98
- Secondary Jet Diameter: 0.095
- Main Venturi Diameter: 1.19
- Body Height: 3.25
- Bore Diameter: Primary Bore 1.44; Secondary Bore 1.69
- Spring Force: 5" Hg (Orange)
- Marine Approved: No

The carburetor uses metering rods to transition between circuits, and it won't be affected by engine backfires. Thus, you won't have to deal with blown-out power valves. The rods can be changed in mere minutes without carburetor removal or fuel draining.

Tech Tips:
- Recommended cubic inch displacement for big block dual quad applications is 396-502+ c.i.d.
- Performer Series Carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket P/N: SRK4000.

Additional Notes:
- Edelbrock carburetors are not calibrated for or compatible with alcohol, race, or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor.
- The use of a new fuel filter between the fuel pump and carburetor is required.
