Edelbrock EFI Intake Elbow 120mm Opening for 4500 Intake Manifolds
Highlights
- For Naturally Aspirated EFI
- Works on +1100 HP Turbo Engine
- Three Mounting Options
- Stops Flow Buildup at Back

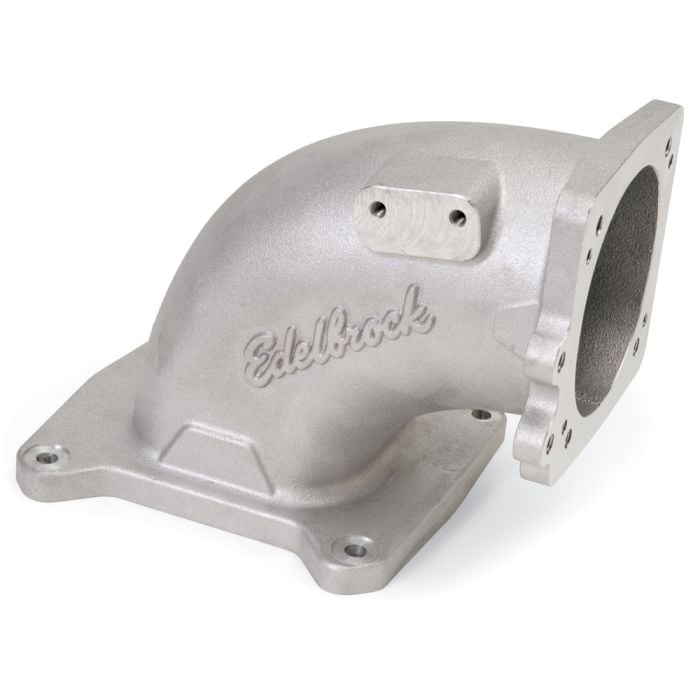

Edelbrock 120mm Opening EFI Intake Elbow for 4500 Intake Manifolds.
Spare your 4500 intake manifold the trouble of flow concentrating at the back with the internal divide inside this intake elbow (3815). Edelbrock designed this part as the ideal elbow for high-power EFI applications that are naturally aspirated. It’s CNC-machined to a 120mm opening, ensuring precise fitment. Plus, by using a 10° downward angle for a total of 100°, it can be mounted forward, backward, or sideways. Provided that they have 1100 horsepower or more, even turbo and centrifugal-supercharged engines can use it.
Features and Benefits:
- Ideal for Powerful, Naturally Aspirated EFI Applications
- Works on +1100 HP Turbo/Centrifugal-Supercharged Engines
- Aluminum Construction & Satin Finish
- Casting is CNC-Machined to 120mm Opening
- Internal Divide Stops Flow Concentration at Back
- 10° Downward Angle for Total of 100°
- Mountable Forward, Backward, or Sideways
- Includes Universal Throttle Bracket
Specifications:
- Overall Height: 8.86”
- Bore Centerline Height: 6”
- Throttle Body Square Bolt Pattern: 4-1/4”
- Base Flange Square Bolt Pattern: 5.375”
Vehicle Fitment:
- 1965-1985 Ford Mustang
- 1948-1979 Ford F-100
- 1966-1977 Ford Bronco
- 1960-1987 Chevy C10
Tech Tip: For a similar elbow that fits 90mm throttle bodies, see Edelbrock part number 3814.
California Residents: Proposition 65 Warning
Related Categories: Mustang Intake Manifolds, Restomod Engine, F-100 Intake Manifolds, F-100 Restomod Engine, C10 Intake Manifolds
Vehicle Fitment
This product will fit the following Bronco years:
This product will fit the following C10 years:
- 1960,
- 1961,
- 1962,
- 1963,
- 1964,
- 1965,
- 1966,
- 1967,
- 1968,
- 1969,
- 1970,
- 1971,
- 1972,
- 1973,
- 1974,
- 1975,
- 1976,
- 1977,
- 1978,
- 1979,
- 1980,
- 1981,
- 1982,
- 1983,
- 1984,
- 1985,
- 1986,
- 1987,
This product will fit the following F-100 years:
- 1948,
- 1949,
- 1950,
- 1951,
- 1952,
- 1953,
- 1954,
- 1955,
- 1956,
- 1957,
- 1958,
- 1959,
- 1960,
- 1961,
- 1962,
- 1963,
- 1964,
- 1965,
- 1966,
- 1967,
- 1968,
- 1969,
- 1970,
- 1971,
- 1972,
- 1973,
- 1974,
- 1975,
- 1976,
- 1977,
- 1978,
- 1979,
This product will fit the following Mustang years:
