Edelbrock EFI Sump Fuel Tank Assembly 67 GPH 35-90 PSI Adjustable Universal

Edelbrock:
36032

Highlights

  • Complete Self-Contained System
  • 67 gph Flow Rate
  • Supports up to 600 HP
  • Made in the USA
$406.95
Earn
points.

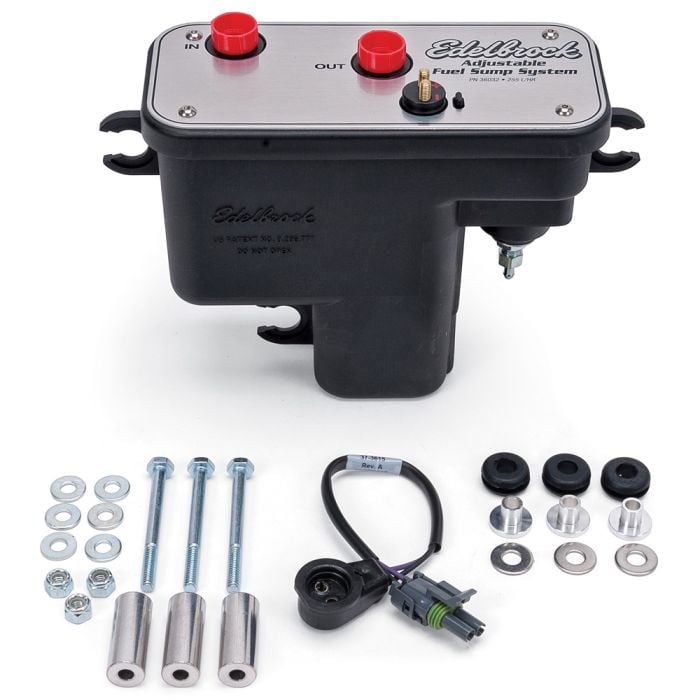

Edelbrock 67 GPH 35-90 PSI Adjustable Universal EFI Sump Fuel Tank Assembly.

When you need a cost-effective way to make your fuel system EFI ready, install this compact Adjustable Universal EFI Sump Fuel Tank Assembly (36032) under the hood of your application. Available from Edelbrock, this complete self-contained system is perfectly compatible with Pro-Flo 3, Pro-Flo 4, and other aftermarket EFI systems.

If your vehicle is currently fitted with a low-pressure carbureted fuel system, this is the high-pressure replacement needed for EFI applications. The assembly features a 67 gph flow rate with adjustability from 35 to 90 psi.

Features and Benefits:
- Provides High Fuel Pressure for EFI Applications
- Complete Self-Contained System Fits Under the Hood
- Equipped with Vacuum Reference Port
- Compatible with Existing Factory Fuel Tank and Pump
- Adjustable from 35 to 90 psi
- 67 gph Flow Rate
- Supports up to 600 HP

Whether you've got an aftermarket EFI system or an engine swap application, this assembly provides the constant 35-90 psi fuel pressure required for operation. Thanks to the unique design of this assembly, it can deliver a constant fuel pressure with no fuel return line, external fuel pressure regulator, or fuel tank modifications.

Tech Tip: Fuel Sump Tank Assembly P/N: EDL36032 is for builders and consumers that want to utilize their own hose and fittings. Complete kit P/N: EDL36031 includes a durable, lightweight plastic fuel sump tank with high-pressure fuel pump, wiring harness, hose and fittings.

Please Note: Requires installation of a vent line from the sump overflow vent port to the fuel tank.

California Residents: Proposition 65 Warning

Related Categories: Mustang Parts, Mustang Engine, Mustang Fuel Pumps & Filters, Mustang Fuel Injected Fuel Pumps, Mustang Fuel Tank Area

Vehicle Fitment

This product will fit the following Bronco years:

This product will fit the following C10 years:

This product will fit the following F-100 years:

  • 1948,
  • 1949,
  • 1950,
  • 1951,
  • 1952,
  • 1953,
  • 1954,
  • 1955,
  • 1956,
  • 1957,
  • 1958,
  • 1959,
  • 1960,
  • 1961,
  • 1962,
  • 1963,
  • 1964,
  • 1965,
  • 1966,
  • 1967,
  • 1968,
  • 1969,
  • 1970,
  • 1971,
  • 1972,
  • 1973,
  • 1974,
  • 1975,
  • 1976,
  • 1977,
  • 1978,
  • 1979,

This product will fit the following Mustang years:
