Edelbrock Dual Outlet Fuel Pressure Regulator Kit With 4500-Series Flange

The Edelbrock Dual Outlet 4500-Series Flange Fuel Pressure Regulator Kit (8193) provides a precise fuel pressure adjustment range from 4.5 to 9 psi and caters to a wide variety of vehicles. The dual outlet configuration enhances versatility and flow capabilities, making it suitable for high-performance scenarios. Constructed from aluminum, the kit offers durability and resistance to corrosion, while its natural finish ensures it looks as good as it performs. With 3/8” NPT inlet and outlet sizes, the kit comes complete with all necessary fittings, a mounting plate, a fuel line, and the regulator itself, ensuring you have everything needed for a straightforward installation.

Features and Benefits:
- Universal fitment
- Precise fuel pressure adjustment range of 4.5-9 psi
- Dual outlet design for versatility and greater flow
- Aluminum construction for durability and corrosion resistance
- Sleek, natural finish
- 3/8” NPT inlet and outlet size

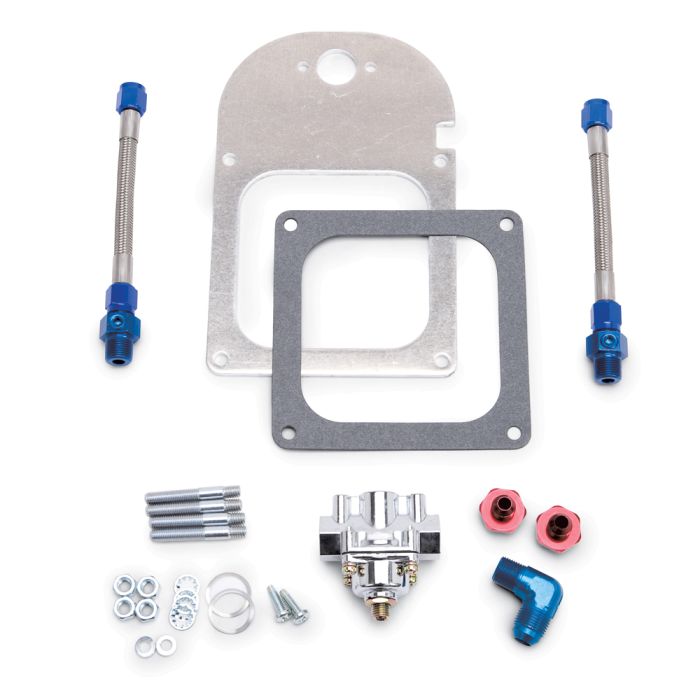

- Includes fittings, mounting plate, fuel line, and regulator
- Made in the USA

Specifications:
- Inlet port diameter: 0.675”
- Inlet type: threaded
- Mounting type: bracket
- Outlet port diameter: 0.675”
- Outlet type: threaded
- Port quantity: 4

Tech Tips:
- Designed for Holley square bore or 4500 Dominator series dual-feed carburetors on alcohol, turbo, and supercharged gasoline engines.
- Recommended for use with Edelbrock racing fuel pumps or any high-output fuel pumps.

Please Note: The fuel line from the fuel pump to the regulator is not included. Use part number #8122 or #8127 below for fuel pumps with 1/2" NPT outlets.
