Edelbrock Intake Elbow for Single Throttle Body/4500 Flange
Highlights
- Fits 95mm Bodies/4500 Flanges
- Built from Aluminum
- Optimizes Distribution
- 3 Mounting Options

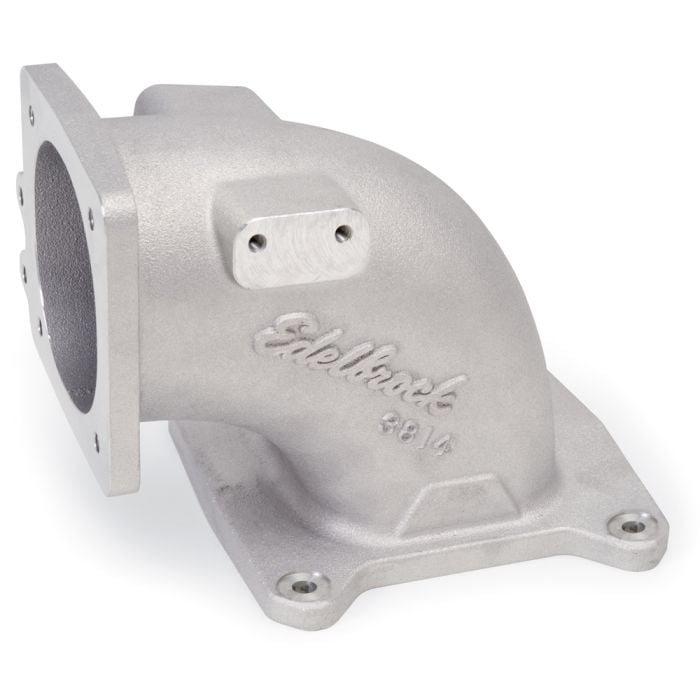

Edelbrock Intake Elbow for Single Throttle Bodies or 4500 Flanges.
Whether you’ve got an LS1, LS2, or Ford 5.0L throttle body, this intake elbow is the best choice for adapting to an EFI manifold (3814). Edelbrock specially designed this aluminum elbow for EFI manifolds with a traditional, square bore mounting pad. It has a universal bolt pattern, capable of accepting 95mm throttle bodies and 4500-style flanges. This allows use with a variety of applications, giving them an internal divide that optimizes manifold flow and distribution. You can make the most of your hood clearance by mounting it forward, backwards, or sideways.
Features and Benefits:
- For LS1, LS2, & Ford 5.0L Throttle Bodies
- Adapts to EFI Manifolds with Square-Bore Pads
- Bolt Pattern Accepts 95mm Bodies & 4500 Flanges
- Aluminum Construction & Satin Finish
- Casting is CNC-Machined to 120mm Opening
- Internal Divide Optimizes Flow Quantity & Distribution
- Mountable Forward, Backward, or Sideways
- Includes Universal Throttle Bracket
Specifications:
- Overall Height: 8.86”
- Bend Angle: 100°
- Bore Centerline Height: 5.92”
- Size: 95mm
- Length: 8”
Vehicle Fitment:
- 1965-1985 Ford Mustang
- 1948-1979 Ford F-100
- 1966-1977 Ford Bronco
- 1960-1987 Chevy C10
California Residents: Proposition 65 Warning
Related Categories: Mustang Throttle Body Spacers, Adapters & EGR Parts, Bronco Engine, Restomod Engine, F-100 Engine, F-100 Restomod Engine
Vehicle Fitment
This product will fit the following Bronco years:
This product will fit the following C10 years:
- 1960,
- 1961,
- 1962,
- 1963,
- 1964,
- 1965,
- 1966,
- 1967,
- 1968,
- 1969,
- 1970,
- 1971,
- 1972,
- 1973,
- 1974,
- 1975,
- 1976,
- 1977,
- 1978,
- 1979,
- 1980,
- 1981,
- 1982,
- 1983,
- 1984,
- 1985,
- 1986,
- 1987,
This product will fit the following F-100 years:
- 1948,
- 1949,
- 1950,
- 1951,
- 1952,
- 1953,
- 1954,
- 1955,
- 1956,
- 1957,
- 1958,
- 1959,
- 1960,
- 1961,
- 1962,
- 1963,
- 1964,
- 1965,
- 1966,
- 1967,
- 1968,
- 1969,
- 1970,
- 1971,
- 1972,
- 1973,
- 1974,
- 1975,
- 1976,
- 1977,
- 1978,
- 1979,
This product will fit the following Mustang years:
