Aeromotive Fuel Filter With Shutoff Valve 100 Micron ORB-10 Black
Highlights
- Built In Fuel Shutoff
- 100 Micron Filter
- Rebuildable Design
- Black Anodized Finish

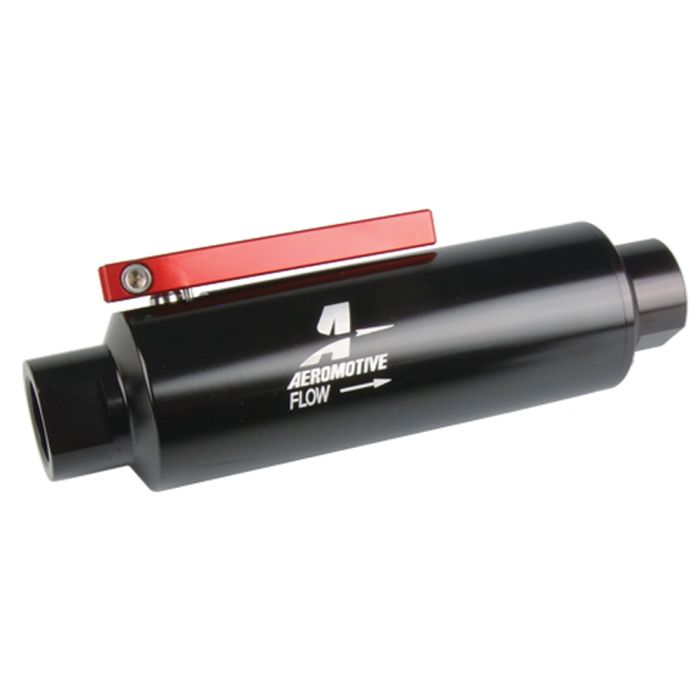

Aeromotive 100 Micron ORB-10 Black Fuel Filter With Shutoff Valve.
This Aeromotive Fuel Filter is designed to be placed before the External Fuel Pump. The 100 Micron Filter is constructed from Stainless Steel Mesh and will collect large pieces of debris in the fuel. The Fuel Filter Body can unthread so you can change out or clean the filter element.
Features and Benefits:
- Fits EFI and Carbureted Engines
- 100-Micron Stainless Steel Cleanable Element (Coarse)
- Shutoff Valve Design
- Red Anodized Shutoff Valve Handle
- ORB-10 Inlet/Outlet Ports
- Includes O-Ring for Positive Sealing in High Pressure Applications
- Constructed from CNC-Machined 6061-T6 Aircraft Aluminum
- Bright Dip Black Anodized Finish
- Proudly Made in the USA!
This Fuel Filter features a Shutoff Valve, allowing you to change out the fuel filter without making a mess. The Shutoff Valve is constructed from Billet Aluminum that is coated in an Anodized Red Finish. The Fuel Filter Body is constructed from CNC-Machined 6061-T6 Aircraft Aluminum. Once the Fuel Filter Body is fully constructed, it is then finished in a Black Anodized Coating. On each end of the Filter Body an ORB-10 Fitting is installed so the customer can run a ORB-10 hose all the way to the Fuel Pressure Regulator. This Fuel Filter is proudly made in the USA!
Dimensions:
Length: 7.38”
Diameter: 2”
Vehicle Fitment:
1965-1985 Mustangs
1966-1977 Broncos
1960-1987 C10
1948-1979 F100
California Residents: Proposition 65 Warning
Related Categories: Mustang Parts, Mustang Engine, Mustang Fuel Pumps & Filters, Mustang Carbureted Fuel Pumps, Mustang Fuel Injected Fuel Pumps
Vehicle Fitment
This product will fit the following Bronco years:
This product will fit the following C10 years:
- 1960,
- 1961,
- 1962,
- 1963,
- 1964,
- 1965,
- 1966,
- 1967,
- 1968,
- 1969,
- 1970,
- 1971,
- 1972,
- 1973,
- 1974,
- 1975,
- 1976,
- 1977,
- 1978,
- 1979,
- 1980,
- 1981,
- 1982,
- 1983,
- 1984,
- 1985,
- 1986,
- 1987,
This product will fit the following F-100 years:
- 1948,
- 1949,
- 1950,
- 1951,
- 1952,
- 1953,
- 1954,
- 1955,
- 1956,
- 1957,
- 1958,
- 1959,
- 1960,
- 1961,
- 1962,
- 1963,
- 1964,
- 1965,
- 1966,
- 1967,
- 1968,
- 1969,
- 1970,
- 1971,
- 1972,
- 1973,
- 1974,
- 1975,
- 1976,
- 1977,
- 1978,
- 1979,
This product will fit the following Mustang years:
