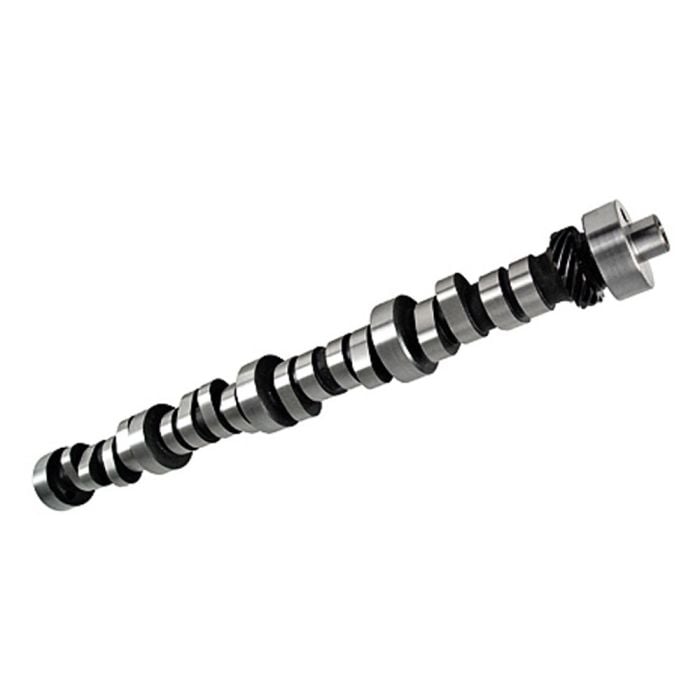

COMP Cams Camshaft Xtreme Energy XE250H-14 Hydraulic Flat Tappet 1000-5200 RPM 289/302

COMP Cams:
31-255-5

Highlights

  • Xtreme Energy Xe250H-14
  • Hydraulic Flat Tappet Camshaft
  • 1000 To 5200 RPM Range
  • Ford 289 And 302 Engines
$310.95
Earn
points.
Product Description

COMP Cams Xtreme Energy XE250H-14 Hydraulic Flat Tappet Camshaft with a 1000 to 5200 RPM Range for Mustangs with a 289 or 302 Engine.

This hydraulic flat tappet camshaft will fit Ford 289 and 302 engines from 1963-1995.

Xtreme Energy camshafts are a best seller due to their excellent all-around performance in street applications. Increased responsiveness and more area under the curve are delivered due to quicker opening lobe profiles. More vacuum is created which allows a step up in duration for greater performance. COMP Cams roller rockers and matched valve springs work best with this camshaft. Other performance parts are recommended (intake manifold, headers, etc.) for best performance.

The Xtreme Energy XE250H-14 camshaft is for E.F.I. Speed Density equipped cars and works with the stock computer. It produces very strong torque and excellent mileage with a good idle quality.

Camshaft Specifications:
- RPM Range: 1000 to 5200
- Valve Timing: 0.006
- Lobe separation (degrees): 114
- Intake Centerline (degrees): 110
- Valve Lash: Hydraulic
- Duration: Intake 250/Exhaust 260
- Duration @ .050" Lift: Intake 206/Exhaust 212
- Valve Lift: Intake 0.462/Exhaust 0.474
- Lobe Lift: Intake 0.289/Exhaust 0.296"

California Residents: Proposition 65 Warning
