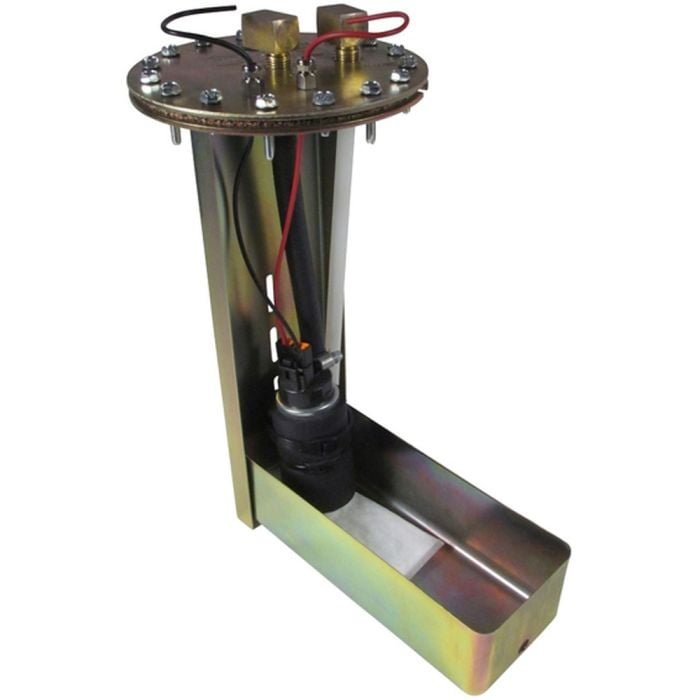

Fuel Pump Module PA Series In-Tank Steel Yellow Zinc-Plated Kit

Are you looking to retrofit an internal fuel pump in your vehicle's original gas tank? Designed for C10s, F-100s, Mustangs, and Broncos, this PA Series Yellow Zinc-Plated Steel In-Tank Fuel Pump Module Kit from CJ Pony Parts includes everything you need to install an internal fuel pump in your 6-inch to 10-1/2 inch deep fuel tank!

Features and Benefits:
- Complete fuel pump kit!
- Assemble and install to your tank's depth
- Heavy gauge yellow zinc-plated steel components
- Fits 6-inch to 10-1/2 inch tank depth without modification
- Eliminates fuel pump starvation, vapor lock, and cavitation
- Up to 100 PSI rating
- All flow rates rated at 13-1/2 volts

This PA Series In-Tank Fuel Pump Module Kit includes numerous pieces to complete your new fuel pump installation! To eliminate fuel pump starvation that commonly happens on non-baffled tanks, this kit includes a handy reservoir tray. Once your new fuel pump is completely installed, you will also be able to avoid external fuel pump issues such as vapor lock and cavitation. Depending on pressure, this pump is capable of running up to 100 PSI to deliver various amounts of fuel in gallons per hour. Available in several LPH options, this kit records estimated max HP ratings at 60, 70, and 7 PSI.

Kit Includes:
- Reservoir tray
- 1/4-inch NPT supply line
- 1/4-inch NPT return line
- 1/4-inch NPT vent opening
- In-tank fuel pump wiring harness
- Threaded heavy-gauge in-tank mounting ring
- Heavy gauge mounting plate
- Adjustable height support arm
- Genuine Walbro fuel pumps

Additional Notes:
- Does not include a pressure regulator.
- Assembly requires a minimum tank depth of six (6) inches.
- Maximum tank depth of 10-1/2 inches without modification.
- Gerotor style pumps cannot be used with Pulse Width Modulation.
- If using with a FiTech system, be sure to turn of PWM.

Vehicle Fitment:
- 1960-1987 Chevrolet C10
- 1948-1979 Ford F-100
- 1965-1973 Mustang
- 1966-1977 Ford Bronco
