McLeod Street Extreme Clutch Kit 1-1/8" x 26 Spline Mustang GT 1986-2001/ SVT Cobra 1993-1998

McLeod:
75307

Highlights

  • Street Drivable
  • Track Capable
  • Holds 700 Horsepower
  • Ceramic Friction Material
MSRP $556.25
$445.00
You save 20%
Earn
points.
Product Description

McLeod Street Extreme 1-1/8” X 26 Spline 10.5” Clutch Kit for 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000 and 2001 GT Mustangs with a Manual Transmission and 1993, 1994, 1995, 1996, 1997 and 1998 SVT Cobra Mustangs.

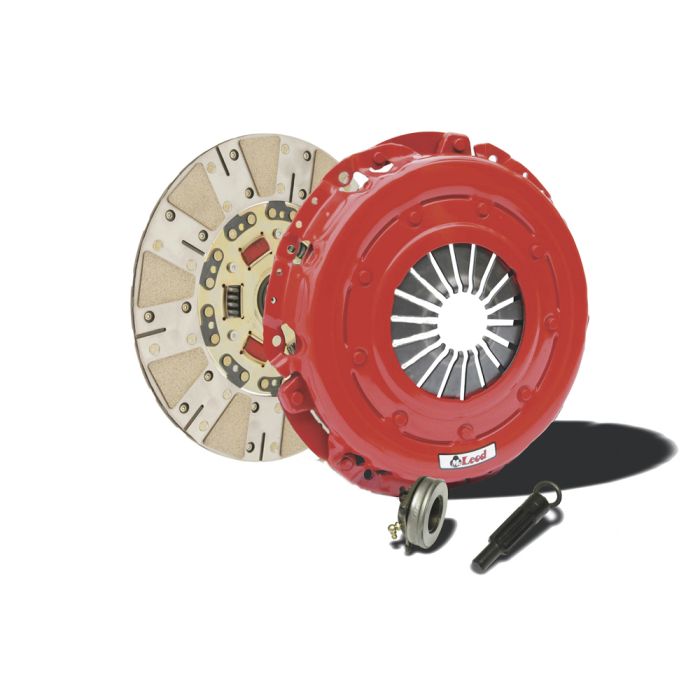

If you're into aggressive street driving and occasional track driving, this McLeod Street Extreme clutch kit (75307) holds up to 700 lbs.-ft. of torque with street tires and moderate engine mods. These SFI-approved packages are the perfect upgrade for your high horsepower Mustang that needs reliable shifting on the street and the track. They feature a dual-faced ceramic friction disc, high clamp load pressure plate, alignment tool and throwout bearing. You can run your pony with complete peace of mind. Street-friendly and track-proven, a McLeod Street Extreme clutch kit is your best decision.

Features and Benefits:
- Street drivable but track capable
- Ceramic clutch disc for high performance durability
- Reduced rotating mass for improved weight

McLeod's world-renowned service and performance heritage speak for themselves. McLeod’s goal is to be able to provide customers quality products no matter the power level; and this Street Extreme Clutch Kit is an excellent product with all the McLeod world class quality the industry has come to expect.

Specifications:
- Input Shaft / Spline: 1-1/8” x 26
- Disc Diameter: 10.5”
- Disc Material: Ceramic
- Disc Style: Full Face/Multi-Pad
- Hub Style: Sprung
- Pressure Plate Style: Diaphragm
- Horsepower Rating: 650
- Clutch Usage: Street/Track
- Number of Discs: Single

Please Note:
This Clutch Kit does NOT include a Flywheel or any replacement hardware for installation. Depending on your application, please make sure you are using the correct tooth and balance flywheel during the installation this new McLeod Clutch Kit.

Vehicle Fitment:
- 1986-2001 GT Mustangs
- 1993-1998 SVT Cobra Mustangs
- Will NOT fit V6 Mustangs.

Tech Tip:
This Clutch Kit is designed for use with 26 spline aftermarket transmissions such as the Tremec TKO and T56 or factory transmissions equipped with a 26 spline conversion.

Tech Tip 2:
In 2001, Ford made the Mustang GT available with two different transmissions. To find out which style transmission you have, check the data sticker located on the driver side door jamb. A "K" means the car came with a TR3650 and a "6" indicates a T45. This clutch kit works with the TR3650.

California Residents: Proposition 65 Warning

Related Categories: Mustang Parts, Mustang Transmission, Mustang Clutch Kits, Restomod Parts, Restomod Transmission

Installation & Fitment

Installation Difficulty

Difficult
Difficult

Advanced skill is required for this installation.

Vehicle Fitment

This product will fit the following Mustang years:
