Trick Flow Cylinder Head Twisted Wedge 11R 205cc Intake 2.080/1.60 Valves Dual Springs 56cc Chambers Competition Port Titanium Retainers 289/302/351W

Trick Flow:

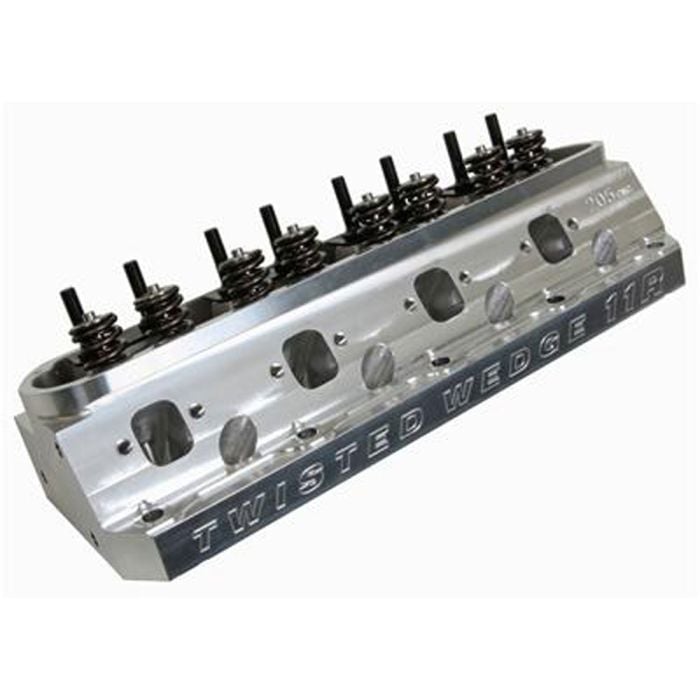

Trick Flow Competition Port Twisted Wedge 11R Cylinder Head with Titanium Retainers, 205cc Intake Runners, 2.080/1.60 Intake/Exhaust Valves, Dual Springs and 56cc Combustion Chambers for 289, 302 and 351W Engines.

Twisted Wedge Cylinder Heads are great for extracting horsepower from your small block Ford. Trick Flow's cylinder head features 205cc intake runners, 2.080 intake valves, 1.60 exhaust valves, dual springs and 56cc combustion chambers. This head is the perfect addition to your 289, 302 or 351W engine.

Trick Flow took their Twisted Wedge 11R 205cc cylinder heads and added titanium valve retainers for even more performance. Titanium valve retainers do not weigh as much as steel retainers which makes for a much lighter valve train. This decrease in weight allows the valve train to work easier and increases valve train control. The 11R heads feature full CNC competition porting which provides better air flow for your deep breathing engine. The 11R is a bolt-on performer with premium grade materials and components. Advanced 3D solid modeling, CAD tools and many years of racing experience started the development of 11 degree valve angles to set this head apart from the original Twisted Wedge heads. This new slant increases air flow and your small block Ford's performance.

Modified 11 degree intake and 13 degree exhaust valve angles are paired with a CNC-profiled combustion chamber for better air flow and performance potential. This head features high velocity, race inspired CNC competition ported runners which offer better performance over the street ported runners. Competition ported runners and chambers have a high resolution finish for ultimate performance.

Twisted Wedge series heads are known for their twisted wedge combustion chambers and valve layout, high flow/high velocity intake runners, top quality valvetrain components and, in this case, complete CNC-profile. Smooth CNC machined intake and exhaust runners provide the best surface for increased air flow. This cylinder head comes fully assembled.

Trick Flow Twisted Wedge cylinder heads are made from A356-T61 aluminum castings which have been redesigned on the exhaust side to improve strength and water jacket integrity for increased durability.

Cylinder Head Specifications:
- Cylinder Head Style: Assembled
- CNC-Machined Ports: Yes
- Port Finish Type: CNC competition ported
- Emissions Status: Not emissions legal
- Intake Port Volume: 205cc
- Combustion Chamber Volume: 56cc CNC-profiled
- Minimum Bore Diameter: 4.000 in
- Material: A356-T61 aluminum
- Combustion Chamber Shape: Twisted Wedge
- Intake Valve Angle: 11 degree
- Intake Port Location: Stock
- Intake Port Shape: Rectangular
- Intake Port Dimensions: 1.400 in x 2.250 in
- Intake Valve Diameter: 2.080 in
- Intake Valve Seat: Ductile iron
- Exhaust Valve Angle: 13 degree
- Exhaust Port Volume: 66cc
- Exhaust Port Location: Stock
- Exhaust Port Shape: Square
- Exhaust Port Dimensions: 1.250 in x 1.480 in
- Exhaust Valve Diameter: 1.600 in
- Exhaust Valve Seat: Ductile iron
- Valve Guide Material: Bronze alloy
- Valve Seals: Viton® fluoroelastomer
- Valve Seat Angles: 45 degree x multi-angle
- Valve Spring Pocket Diameter: 1.640 in
- Valve Spring Cups: 1.300 in
- Valve Spring Retainers: Titanium
- Valve Stem Locks: 7 degree
- Valve Springs Included: Yes
- Valve Springs: 1.300 in outer diameter dual spring
- Valve Spring Seat Load: 150 lbs @ 1.800 in installed height
- Valve Spring Open Load: 438 lbs @ 1.200 in open
- Valve Spring Rate: 448 lbs per inch rate
- Valve Spring Maximum Valve Lift: .600 in
- Guideplates: 5/16 in
- Rocker Arm Studs: 7/16 - 20
- Valve Cover Style: Perimeter bolt
- Spark Plug Style: Angle
- Accessory Bolt Holes Drilled/Tapped: Yes
- O-Ring Grooves: No
- Heat Crossovers: No
- Steam Holes: No
- Quantity: Sold individually

*The cylinder head is drilled for 1/2" head bolts. 7/16" bolts will require reducer bushings.
*Off-road use only.

California Residents: Proposition 65 Warning

Note: This item is not CARB (California Air Resource Board) exempt and is not legal for sale or use in the state of California.
