Aeromotive SS Series Billet Fuel Pump With ORB-08 Ports
Highlights
- For Carbureted Vehicles
- Over 140 GPH Fuel Flow
- Supports Up To 750 HP
- Made in the USA

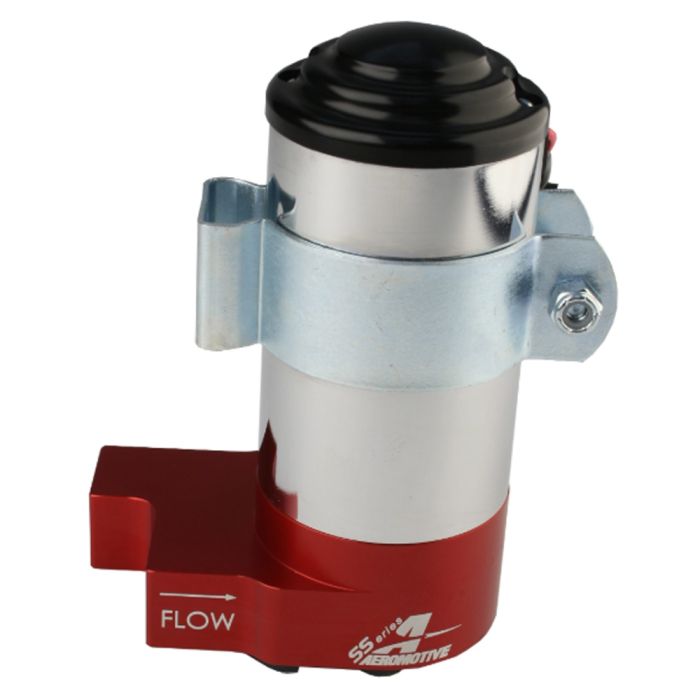

Aeromotive SS Series Billet Fuel Pump With ORB-08 Inlet/Outlet Ports.
The Aeromotive Fuel Pump is designed for Carbureted Engines that make 200-750 HP. The Fuel Pump has a ORB-08 Inlet and Outlet for a high output fuel flow. The SS Series Billet Fuel Pump is constructed from durable billet aluminum that has a red anodized finish. The Fuel Flow exceeds 140 GPH (Gallons Per Hour) at 13.5 Volts. The Aeromotive SS Series Fuel Pump mechanism features a composite rotor, stainless steel vanes and precision ground, heat treated steel plates.
Features and Benefits:
- For Carbureted Vehicles
- ORB-08 Inlet/Outlet Ports
- Fuel Flow Exceeds 140 GPH at 13.5 Volts
- Fuel Pump Provides 14 PSI Fuel Pressure
- Low Current Draw (Under 5 Amps)
- Ideal for 200-750HP Carbureted Engines
- Proudly Made in the USA!
Horsepower Capability for Carbureted Engines (Gas)
- Naturally aspirated: up to 750hp
- Forced induction: up to 575hp
Horsepower Capability for Carbureted Engines (E85)
- Naturally aspirated: up to 525hp
- Forced induction: up to 400hp
California Residents: Proposition 65 Warning
Related Categories: Mustang Parts, Mustang Engine, Mustang Fuel Pumps & Filters, Mustang Carbureted Fuel Pumps, Ford Bronco Parts
Only for use on pre-pollution controlled vehicles: This product can be used on vehicles that were manufactured before emissions control regulations were imposed. Pre-pollution vehicles are defined as:
- 1965 and older U.S. manufactured California certified vehicles
- 1967 and older U.S. manufactured federally certified vehicles
Installation Difficulty
Intermediate skill is required for this installation.
Installation Instructions
Vehicle Fitment
This product will fit the following Bronco years:
This product will fit the following C10 years:
- 1960,
- 1961,
- 1962,
- 1963,
- 1964,
- 1965,
- 1966,
- 1967,
- 1968,
- 1969,
- 1970,
- 1971,
- 1972,
- 1973,
- 1974,
- 1975,
- 1976,
- 1977,
- 1978,
- 1979,
- 1980,
- 1981,
- 1982,
- 1983,
- 1984,
- 1985,
- 1986,
- 1987,
This product will fit the following F-100 years:
- 1948,
- 1949,
- 1950,
- 1951,
- 1952,
- 1953,
- 1954,
- 1955,
- 1956,
- 1957,
- 1958,
- 1959,
- 1960,
- 1961,
- 1962,
- 1963,
- 1964,
- 1965,
- 1966,
- 1967,
- 1968,
- 1969,
- 1970,
- 1971,
- 1972,
- 1973,
- 1974,
- 1975,
- 1976,
- 1977,
- 1978,
- 1979,
This product will fit the following Mustang years:
