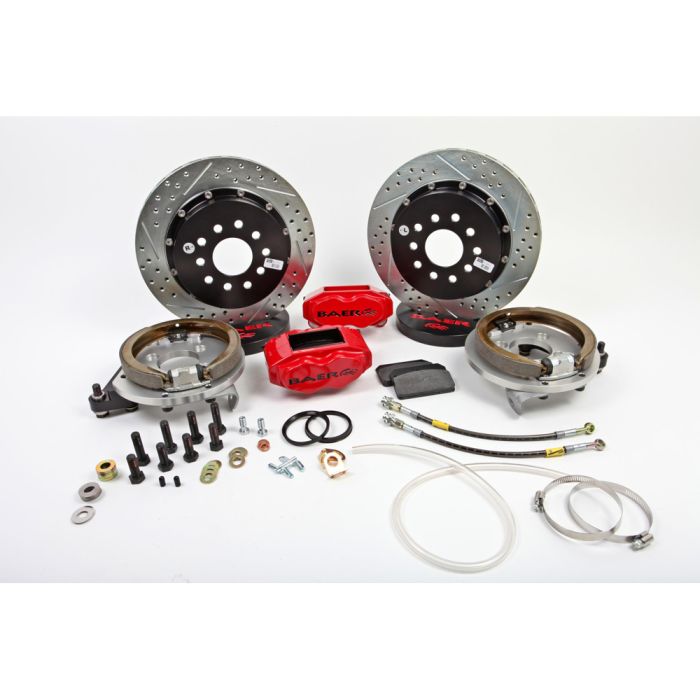

Baer Brakes Brake System 13" Rear SS4 with Park Brake Black With Stock 9" Ford With Big Bearing Housing

Baer Brakes’ 13" Rear SS4 Brake System is designed specifically for your stock 9" Ford big bearing housing. This system combines power and precision, featuring four 10mm cross bolts for durability, stainless steel abutments, and noise suppression springs for a quieter stop. The hard-anodized aluminum pistons ensure longevity even under rigorous conditions. With an internal crossover design, dual seals, and compliance with DOT specifications, this system guarantees safe and reliable braking pressure. The SS4 system is not just high-performing, but also visually stunning with its machined logo and hand-painted details. The common 4 piston pad design simplifies replacements, getting your ride back on the road quickly. This system is available for both front and rear applications, providing a cohesive appearance. The use of correct banjo style fittings ensures easy installation and system integrity.

Features and Benefits:
- Four 10mm Cross Bolts for Maximum Stiffness
- Stainless Steel Abutments and Noise Suppression Springs
- Hard-Anodized Aluminum Pistons
- Internal Crossover Design
- Dual Dust, Weather, and Pressure Seals Meet D.O.T. Specifications
- Hand-Painted, Machined Logo
- Uses Common 4-Piston Pad for Easy Replacement
- Uses Correct Banjo Style Fittings - Baer Does Not Use Any Pipe Thread
- Fits Most Dual Beadlock Wheels
- Designed Specifically for Heavy, Fast Cars
- Can Be Used on the Street
- 6061 T-6 Billet Aluminum Hat Anodized Black and Bolted to the Rotor
- High Grade U281 Fine Thread Stainless Hardware with Captured Nuts
- Made in the USA

Despite its compact size, the SS4 can accommodate 15-inch wheels and is ideal for most dual beadlock wheels. It is specially formulated for heavyweight, fast-moving vehicles, providing confidence on the streets or tracks. The 6061 T-6 billet aluminum hat, finished in anodized black and securely bolted to the rotor, enhances the durability of the system. Every component, including the high-grade U281 fine thread stainless hardware, reflects the meticulous craftsmanship of this American-made kit. Trust Baer Brakes to bring you to a confident halt every time.

Vehicle Fitment:
- Designed To Be Used With Stock 9 Inch Ford With Big Bearing Housing With SHELBY Logo
- This System Has Both 5 x 4.500 Inch And 5 x 4.750 Inch Wheel Bolt Patterns

Additional Notes:
- Your axle flange will need to be turned down to 5.75 inches for this system to work. These systems are available in a variety of piston sizes. The larger piston area, 1.75 inches, will provide maximum clamping force, but can cause long pedal issues due to large volume requirements. A smaller 1.375 inch piston option was introduced, and has been a very popular option in classes such as NMRA True Steet where the cars will see limited street use. These rear systems are designed for racing only. If used on the street, due to brake bias change, be sure to spend some time to make sure adjusted correctly.
- This system comes equipped with a high friction pad that is optimized for drag race applications. These pads often produce more dust and noise.
