Centerforce Clutches SST Clutch And Flywheel Kit 1-1/8" X 26 Spline 10.4" Diameter Mustang 260/ 302 1965-1995
Highlights
- Solid Street Twin Clutch Kit
- 10.4" (264.2mm) Diameter
- 1-1/8" x 26 Spline Input Shaft
- Made in the USA!
Centerforce Clutches 10.4" Diameter 1-1/8" x 26 Spline SST Clutch and Flywheel Kit for 1964-1965 Mustangs with a 4.3L 260 CID Engine and for 1968, 1969, 1970, 1971, 1972, 1973, 1979, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994 and 1995 Mustangs with a 5.0L 302 CID Engine.
Features and Benefits:
- 10.4" diameter (264.2mm)
- 1-1/8" x 26 spline input shaft
- Holds up to 925 ft/lbs. of torque
- Solid hub disc with organic material
- 157-tooth ring gear
- 6-bolt crank
- 0, 28, 50 counterbalance
- Solid hubs reduce rotational weight on input shaft
- Quick, clean shifts with smooth engagement
- Reduces floater rattle/noise
- Bolt-in installation
- Made in the USA!
This Solid Street Twin (SST) Clutch and Flywheel Kit provides 1965-1995 Mustangs producing anywhere from 400 to 925 ft/lbs. of torque with smooth engagement and quick shifts. It's developed and made in the USA by Centerforce Clutches, including 10.4-inch diameter discs made from friction materials and solid hubs. Floater noises and rattles are diminished thanks to a lightened billet steel flywheel that spins at higher RPM. It also features a bolt-in installation using the supplied hardware. This kit (412115757) performs effortlessly on or off the track!

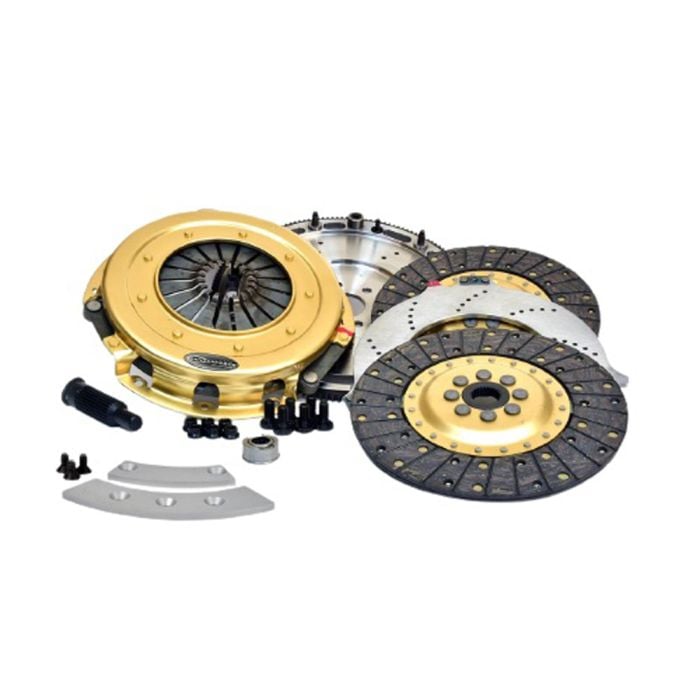

Kit Includes:
- (2) Discs
- Floater Plate
- Pressure Plate
- Billet Steel Flywheel
- Pilot Bearing
- Alignment Tool
- Balance Weight Kit
- Cover and Bolts
Specifications:
- Out-of-Package Weight: 39.3 lbs.
- Billet Steel Flywheel with Nodular Iron Pressure Plate and Organic Friction
- Input Shaft Diameter: 1-1/8"
- Input Spline Quantity: 26
- Clutch Disc Diameter: 10.4" (264.2mm)
- Disc Quantity: 2
- Disc Material: Organic
- Disc Type Sprung Solid: Solid
- Disc Type: Full face
- Alignment Tool Included: Yes
- Mounting Hardware Included: Yes
- Pilot Bushing Included: Yes
- Torque Capacity: 925 ft/lb.
- Flywheel Crank Bolt Size: 7/16" x 20 x 0.875
- Tooth Quantity: 157
- Ring Gear OD: 13.294"
- Crankshaft Bolt Hole Quantity: 6
Vehicle Fitment:
- 1964-1965 Mustang Base - 4.3L (260 CID)
- 1968-1973 Mustang Base - 5.0L (302 CID)
- 1979 Mustang Base - 5.0L (302 CID)
- 1968 Mustang Shelby GT350 - 5.0L (302 CID)
- 1970-1971 Mustang Boss 302 - 5.0L (302 CID)
- 1970-1973 Mustang Grande - 5.0L (302 CID)
- 1970-1973 Mustang Mach 1 - 5.0L (302 CID)
- 1979 Mustang Ghia - 5.0L (302 CID)
- 1982 Mustang GL - 5.0L (302 CID)
- 1982 Mustang GLX - 5.0L (302 CID)
- 1982-1995 Mustang GT - 5.0L (302 CID)
- 1982 Mustang L - 5.0L (302 CID)
- 1984 Mustang GT350 20th Anniversary - 5.0L (302 CID)
- 1984-1993 Mustang LX - 5.0L (302 CID)
- 1993-1995 Mustang SVT Cobra - 5.0L (302 CID)
