Edelbrock Cylinder Head Victor Jr. With Valves Small Block Ford 289-351W

Edelbrock:
77179

Highlights

  • Aluminum
  • Bolt-On Fitment
  • Manganese Bronze Guide
  • Made in the USA
MSRP $842.95
$842.50
You save $0.45

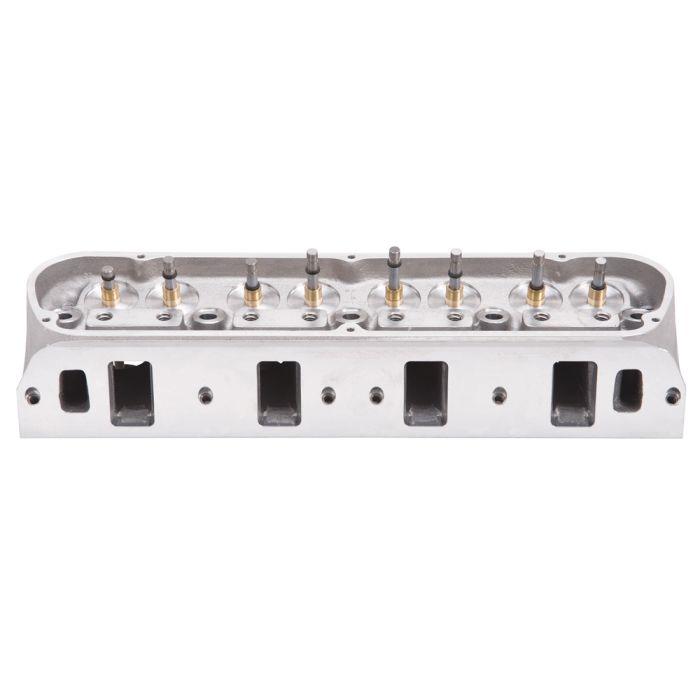

Edelbrock Victor Jr. Cylinder Head with Valves for Small Block Ford 289-351W Engines.

Give your race-ready Small Block Ford 289-351W Engine a competitive edge with this 20-degree Victor Jr. Cylinder Head (77179) with Valves. This Edelbrock creation boasts a walloping 500+ horsepower potential straight out-of-the-box using stock valve train geometry.

Features and Benefits:
- Aluminum Construction
- Compatible with OE Valve Train and Pistons
- 500+ Horsepower Potential
- High-flowing 210cc Intake Ports
- .130" Raised 75cc Exhaust Ports
- Available with 60cc Combustion Chambers
- CNC Gasket-Matched Port Entries/Exits with Blended Valve Bowls

The Victor Jr. Small Block Ford Cylinder Head is compatible with the OE valve train and pistons for an easy bolt-on fitment. The spark plug holes and valves are situated in the stock location while the valve cover rail is raised .150 inches. Thanks to a relief in the head, you will be able to change most roller lifters without removing the heads.

Specifications:
- CNC Ported: No
- Combustion Chamber Volume: 60.0 cc
- Deck Height: 9.5 in
- Deck Thickness: 0.625 in
- Exhaust Valve Diameter: 1.600 in
- Guide Plates Included: Yes
- Intake Runner Volume: 210.0 cc
- Exhaust Runner Volume: 75cc
- Push Rod Diameter: 0.312 in
- Rocker Stud Diameter: 0.437 in
- Valve Angle: 20 Degree
- Valve Stem Diameter: 0.341 in

The part is equipped with high-flowing 210cc intake ports and .130-inch raised 75cc exhaust ports. Lastly, the part features a 60cc combustion chamber to meet the needs of your application. To maximize horsepower and RPM at an affordable price, mount the Victor Jr. Cylinder Head to your ultra-high performance street engine.

Tech Tips:
- Check cam manufacturer's specs for compatibility with valve springs. Recommended valve sizes listed.
- Match with Edelbrock head gasket sets.
- Use Head Bolt Kits for easy installation.

Please Note: These heads require the use of a 14mm x 3/4" reach, flat gasket spark plug with a heat range appropriate to your application.

California Residents: Proposition 65 Warning

Installation Difficulty

Easy
Easy

Novice skill is required for this installation.

Vehicle Fitment

This product will fit the following Bronco years:

This product will fit the following F-100 years:

  • 1948,
  • 1949,
  • 1950,
  • 1951,
  • 1952,
  • 1953,
  • 1954,
  • 1955,
  • 1956,
  • 1957,
  • 1958,
  • 1959,
  • 1960,
  • 1961,
  • 1962,
  • 1963,
  • 1964,
  • 1965,
  • 1966,
  • 1967,
  • 1968,
  • 1969,
  • 1970,
  • 1971,
  • 1972,
  • 1973,
  • 1974,
  • 1975,
  • 1976,
  • 1977,
  • 1978,
  • 1979,

This product will fit the following Mustang years:
