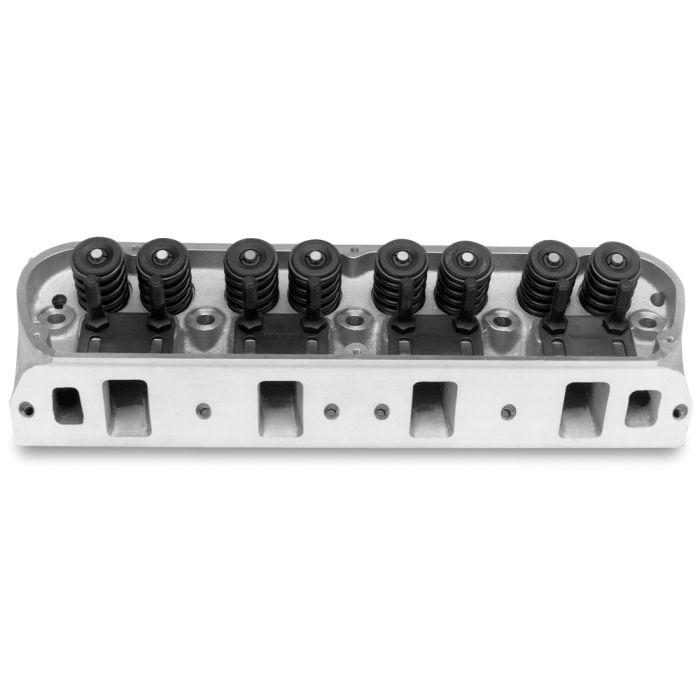

Edelbrock Victor Jr Small Block 289-351W Ford Cylinder Head Bare

Edelbrock:
77169
$622.95

Edelbrock Victor Jr Small Block 289-351W Ford Cylinder Head Bare

The Edelbrock 77169 Victor Jr. Small Block Ford cylinder heads offer high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience. VICTOR JR. 20° - 210cc FEATURES: 500+ horsepower potential out-of-the-box using stock valve train geometry High-flowing 210cc intake ports and .130" raised 75cc exhaust ports Available with 60cc or 70cc combustion chambers 70cc combustion chambers are ideal for turbocharged and supercharged applications CNC gasket-matched port entries/exits with blended valve bowls Spark plug holes and valves are in the stock location Valve cover rail raised .150" A relief in the head allows most roller lifters to be changed without removing heads

Installation Notes:

Check cam manufacturer's specs for compatibility with valve springs. Recommended valve sizes listed. Match with Edelbrock head gasket sets. Use Head Bolt Kits for easy installation. These heads require the use of a 14mm x 3/4" reach, flat gasket spark plug with a heat range appropriate to your application. Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 5/16" (width of slot in guide plate).

CNC Ported No
Combustion Chamber Volume 60 cc
Deck Height 8.2, 8.7, 9.2, 9.5 in
Deck Thickness 5/8 in
Exhaust Valve Diameter 1.60 in
Guide Plates Included Yes
Intake Runner Volume 210 cc
Material A356 Alloy, Heat Treated to T-6 Specification
Valve Angle 20 deg

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following Bronco years:

This product will fit the following F-100 years:

  • 1948,
  • 1949,
  • 1950,
  • 1951,
  • 1952,
  • 1953,
  • 1954,
  • 1955,
  • 1956,
  • 1957,
  • 1958,
  • 1959,
  • 1960,
  • 1961,
  • 1962,
  • 1963,
  • 1964,
  • 1965,
  • 1966,
  • 1967,
  • 1968,
  • 1969,
  • 1970,
  • 1971,
  • 1972,
  • 1973,
  • 1974,
  • 1975,
  • 1976,
  • 1977,
  • 1978,
  • 1979,

This product will fit the following Mustang years:
