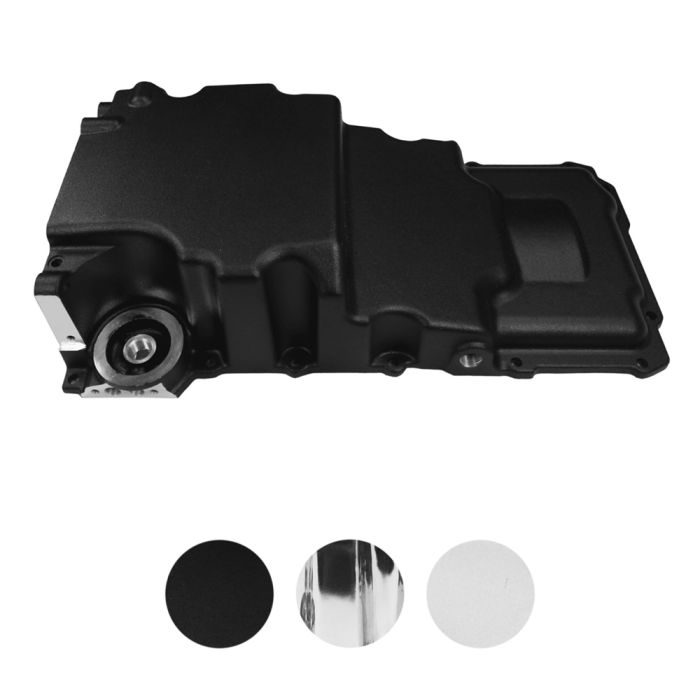

FiTech Plus 6.1-Quart Low-Profile Oil Pan Kit for LS Engine Swap

When your LS engine swap needs more space to clear a 4” stroke crankshaft, the FiTech Plus low-profile oil pan kit has got your back! This kit is specially designed for the GM “F-Body” windage tray sold under part number GM 12558253. Not only does it offer an OEM fitment, but it also creates proper structural rigidity for reliable performance.

Features and Benefits:
- Available in Satin, Polished, or Black Finish
- Built with OEM Fitment & Proper Structural Rigidity
- High-Quality Cast Aluminum Construction
- Clears 4” Stroke Crankshafts
- Sump Capacity: 5.6 Qrts, Sump Capacity with Filter: 6.1 Qrts
- Designed for GM “F-Body” Windage Tray (GM 12558253)
- Works with Standard Off-the-Shelf Oil Filters

Don’t worry about exclusively using an OEM oil filter because the kit works with almost any off-the-shelf filter. For example, you can pair it with the filter sold under part number 57060 by Wix or HP-1017 by K&N. Regardless of your choice, you’ll enjoy the sump’s 6.1-quart capacity when combined with the filter.

Vehicle Fitment:
- 1960-1972 Chevy C10
- 1979-2004 Ford Mustang
- 1967-1969 GM F-body (Camaro/Firebird)
- 1982-1992 GM F-body
- 1968-1974 GM X-body
- 1978-1987 GM G-body
- 1964-1972 GM A-body
*Fits a maximum crankshaft size of 4”
*Will NOT work with LS7 engines

Additional Notes:
- Not intended for use with engines that originally used a dry sump system.
- Mustang models MUST have a factory K-member and a Foxbody rack and pinion in order to use the kit.
- The “F-body” windage tray will require modifications to provide clearance to the pick-up tube. A full-length tray may be used as well, as long as it’s shortened and cut to provide the same clearance.
