Edelbrock Cylinder Head E-Series E-205 205cc 2.08" Intake/60cc 1.60" Exhaust Pair For Hydraulic Flat Tappet Camshaft 289/302/351W

Edelbrock:
5028
$1,499.99

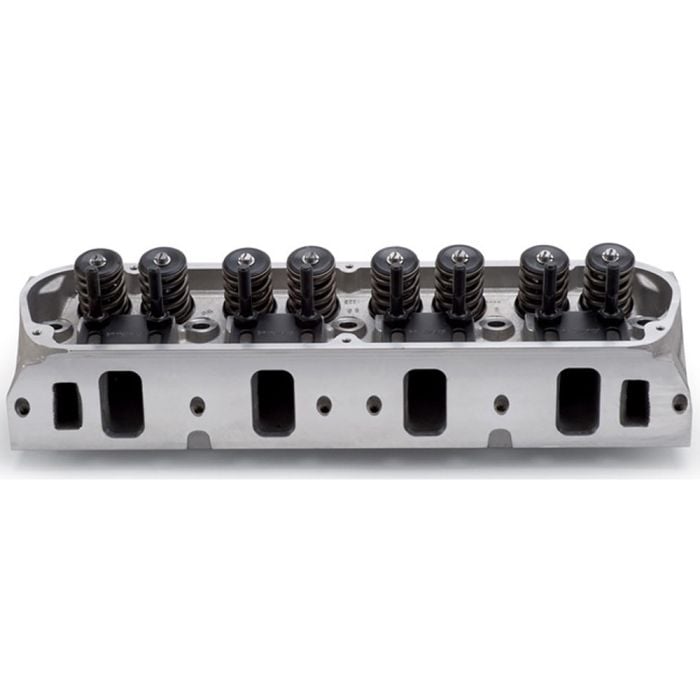

Pair of Edelbrock 205cc/60cc E-Series E-205 Cylinder Heads with 2.08" Intake and 1.60" Exhaust Valve Diameters for 289, 302 and 351W Engines with Hydraulic Flat Tappet Camshafts.

Your vehicle's 289, 302 or 351W engine has some awesome performance potential, but sometimes it just needs a few key pieces to get it over the line. Help reach your goal gains by adding in this pair of brand-new Edelbrock E-Series E-205 Cylinder Heads (5028), now available to purchase here at CJ Pony Parts!

Edelbrock E-Series Cylinder Head Specs:
- Combustion chamber volume: 60cc
- Intake runner volume: 205cc
- Exhaust runner volume: 62cc
- Intake valve diameter: 2.08"
- Exhaust valve diameter: 1.60"
- Valve stem diameter: 11/32"
- Valve guides: Manganese Bronze
- Deck thickness: 5/8"
- Valve spring diameter: 1.46"
- Valve spring maximum lift: .575"(5028) / .650"(5027)
- Rocker stud: 3/8"
- Guideplate: Hardened steel
- Pushrod diameter: 5/16"
- Valve angle: 20°
- Exhaust port location: Stock
- Spark plug fitment: 14mm x 3/4 reach, gasket seat
- Installed Height: 1.800"
- Seated Pressure: 120 lbs.
- Open Pressure: 320 lbs. @ .600" lift
- Max Valve Lift: .575"

Edelbrock understands that you want more power under the hood without having to spend a fortune, so by simply swapping out those original stock heads for these E-Series Cylinder Heads, you'll get increased performance in no time! These E-205 heads are compatible with OEM equipment so there's no need to upgrade other components, just the upgraded cylinder heads and their hardware will provide up to 6500rpm of race-like performance. The brand-new heads feature larger runners for increased air flow and revised exhaust ports for higher lift camshafts, meaning that these cylinder heads are ideal for larger displacement engines. Your small block Ford deserves some upgrades after all those years, so get that power back with these new cylinder heads from CJ's! Order yours today!

Valve  Lift   .100"  .200"  .300"  .400"  .500"  .600"  .700"
Intake    65  128   179   223   253   267   277
Exhaust    57   96   128   155   168   175   180

*Will NOT accept Rail Rockers.
*Sold as a complete pair of two (2) cylinder heads.
*These cylinder heads are only compatible with Hydraulic Flat Tappet Camshafts.

Please Note: When you install a pair of E-series E-205 Cylinder Heads on a 289 or 302 Engine you will need to purchase Edelbrock Head Bolt Bushings (EDL9680).

If you're looking for more performance from your Ford Engine, check out Edelbrock, who is one of the industry leaders with parts for most Ford Engines and more than 75 years of experience. Carburetors, exhausts, intake manifolds, and superchargers are just a few of the things that Edelbrock provides, giving you many ways that you can get the most out of your Small Block Ford with high quality performance products.

Be sure to order this upgraded Pair of Edelbrock 205cc/60cc E-Series E-205 Cylinder Heads (5028) with 2.08" Intake and 1.60" Exhaust Valve Diameters for your 289, 302 or 351W engine with a Hydraulic Flat Tappet Camshaft today from CJ Pony Parts!

California Residents: Proposition 65 Warning

Only for use on pre-pollution controlled vehicles: This product can be used on vehicles that were manufactured before emissions control regulations were imposed. Pre-pollution vehicles are defined as:

  • 1965 and older U.S. manufactured California certified vehicles
  • 1967 and older U.S. manufactured federally certified vehicles

Vehicle Fitment

This product will fit the following Bronco years:

This product will fit the following F-100 years:

  • 1970,
  • 1971,
  • 1972,
  • 1973,
  • 1974,
  • 1975,
  • 1976,
  • 1977,
  • 1978,
  • 1979,

This product will fit the following Mustang years:
