Edelbrock Intake Elbow High-Flow Satin For Super Victor 8.2 EFI Intake Manifold 260/289/302
Highlights
- Satin Finish
- Cast Aluminum Construction
- Fits Up To 95mm Throttle Body
- Universal Throttle Bracket

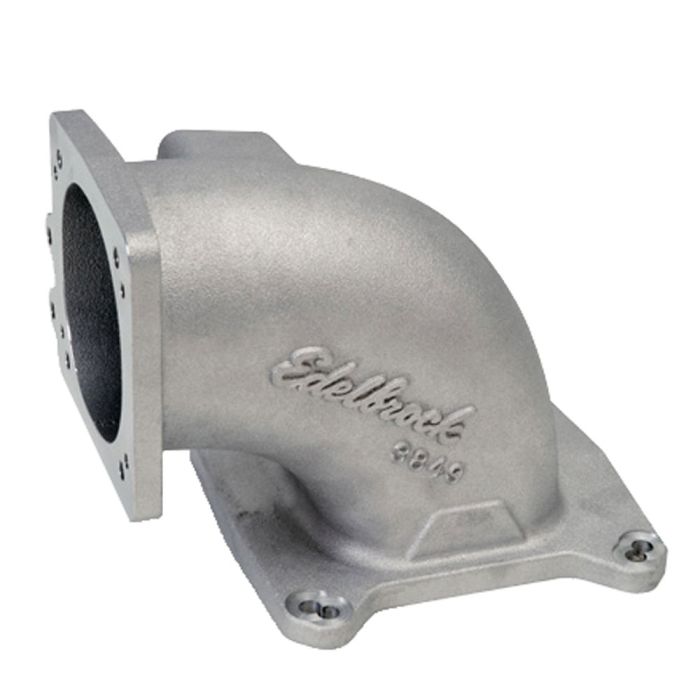

Edelbrock High-Flow Satin Intake Elbow for 260, 289 and 302 Engines Equipped with a Super Victor 8.2 EFI Intake Manifold.
If you’re installing a new Edelbrock Super Victor 8.2 EFI Intake Manifold on your 260, 289 or 302 engine, you’ll definitely need to pick up this Edelbrock High-Flow Satin Intake Elbow from CJ Pony Parts to help get the job done!
Features & Benefits:
- Works on Edelbrock Super Victor EFI Intake Manifolds
- Designed to be Used in High HP Race Applications
- Can Install Up to 95mm Throttle Body
- Made of Cast Aluminum with a Satin Finish
- Square Bore Mounting Flange with 4.250" Square Bolt Pattern
- Universal Throttle Bracket
- Internal Divider Optimizes Flow Distribution to All Manifold Ports by Reducing Turbulence
- Measures 4.50" from Flange to Throttle Body Centerline with 7.75" Overall Height
- Provided Up to 1,050 CFM with 90mm Throttle Body and 1,150 CFM with 95mm Throttle Body During Testing
- Engineered for Use on Dominator 4500-Style Flange Manifold
- 120mm Opening for Maximum Flow
- Capable of More Than 1,400 Naturally Aspirated HP
- Flows 1,800 CFM at 20.5 in H20
- Easy to Install
This Edelbrock (3849) High-Flow Satin Intake Elbow works on all Edelbrock Super Victor EFI Intake Manifolds and is designed for use in high HP race applications, and you can install a throttle body of up to 95mm! This intake elbow is made of cast aluminum with a lovely satin finish and has a square bore mounting flange with a 4.250" square bolt pattern. It also features an internal divider that optimizes flow distribution to all manifold ports by reducing turbulence and is capable of more than 1,400 naturally aspirated HP!
Please Note: Mounting hardware is not included.
Order an Edelbrock (3849) High-Flow Satin Intake Elbow for your 260, 289 or 302 Engine Equipped with a Super Victor 8.2 EFI Intake Manifold from CJ Pony Parts today!
California Residents: Proposition 65 Warning
Related Categories: Mustang Parts, Mustang Engine, Mustang Intake Manifolds, Mustang EFI Manifolds, Mustang Throttle Body & Accessories
Only for use on pre-pollution controlled vehicles: This product can be used on vehicles that were manufactured before emissions control regulations were imposed. Pre-pollution vehicles are defined as:
- 1965 and older U.S. manufactured California certified vehicles
- 1967 and older U.S. manufactured federally certified vehicles
Vehicle Fitment
This product will fit the following Bronco years:
This product will fit the following F-100 years:
This product will fit the following Mustang years:
