Pertronix Ignition Box Digital HP Silver

Pertronix:
512

Highlights

  • Output Voltage: 530 Volts
  • Weight: 0.7 lbs
  • Width: 3.75 Inches
  • Height: 1.65 Inches
MSRP $245.89
$223.54
You save 9%

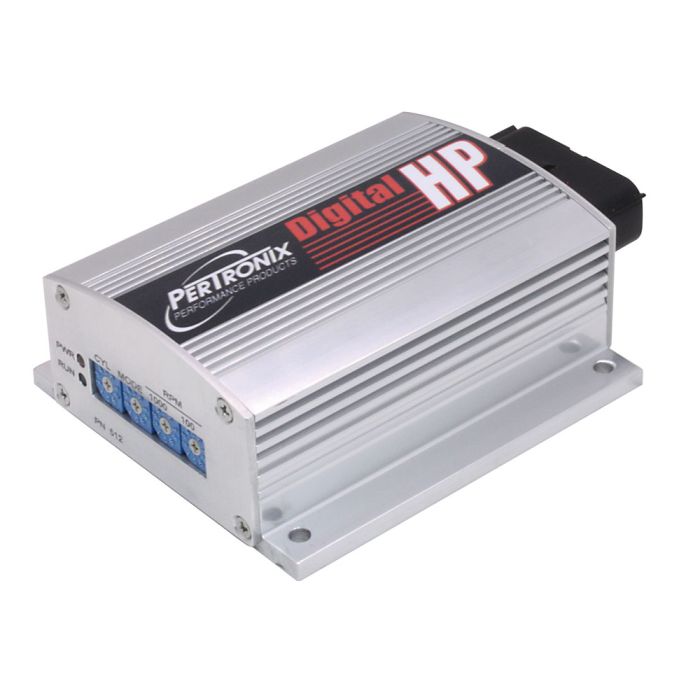

Pertronix Silver Digital HP Ignition Box.

The sleek silver color scheme is just the tip of the iceberg with this performance minded ignition box. With over 187MJ of spark energy, this Digital HP Ignition Box boasts up to 30% more juice than the competition.

Specifications:
Operating Voltage: 9-22 Volts
Cranking Voltage: 8-22 Volts
Current Draw: 1.2A per 1000 RPM
Input Trigger: Points, Electronic Ignition, or Mag Pickup
Output Voltage: 530 Volts
Output Energy: 187+mJ Primary Spark
Tach Output Signal: 12 Volt square wave, 50% duty cycle
Multi-Spark Windows: Up to 20 crank degrees
Start Retard: Adjustable 0-18 degrees / 500-1400 RPM
Housing: 6061-T6 Aluminum
Finish: Hard Anodized Silver
Weight: 0.7 lbs
Length: 4.18 Inches (5.15" with connector)
Width: 3.75 Inches
Height: 1.65 Inches
Mounting Bolt Pattern: 3.5" X 3.25"

This Digital HP Ignition Box utilizes a 3-step digital REV limiter that will control burnout and launch power while protecting against over REV that can have catastrophic consequences for your engine. The RPM trigger output accurately controls shift lights, solenoids and other RPM devices. The adjustable start retard will make it easier to turn-over high compression or difficult to start engines. The onboard diagnostics and tach calibration will run periodic system tests with the easy to use rotary switch and LED feedback.

This Pertronix 512 Silver Digital HP Ignition Box will feed multiple sparks all the way to the redline for better spark timing and true multiple spark function. The tachometer output lead will produce a pure digital tach signal with added filters for OE tachometer compatibility. To keep the installation process as easy as possible your new Silver Digital HP Ignition Box is 70% smaller than typical ignition boxes.

Required Tools:
- Phillips Screw Driver
- Wrenches and Sockets
- Wire Cutters/Strippers
- Power Drill with a #20 Drill Bit
- Crimper (Pertronix T3001 Recommended)

California Residents: Proposition 65 Warning

Installation Difficulty

Difficult
Difficult

Advanced skill is required for this installation.

Vehicle Fitment

This product will fit the following Bronco years:

This product will fit the following C10 years:

This product will fit the following F-100 years:

  • 1948,
  • 1949,
  • 1950,
  • 1951,
  • 1952,
  • 1953,
  • 1954,
  • 1955,
  • 1956,
  • 1957,
  • 1958,
  • 1959,
  • 1960,
  • 1961,
  • 1962,
  • 1963,
  • 1964,
  • 1965,
  • 1966,
  • 1967,
  • 1968,
  • 1969,
  • 1970,
  • 1971,
  • 1972,
  • 1973,
  • 1974,
  • 1975,
  • 1976,
  • 1977,
  • 1978,
  • 1979,

This product will fit the following Mustang years:
