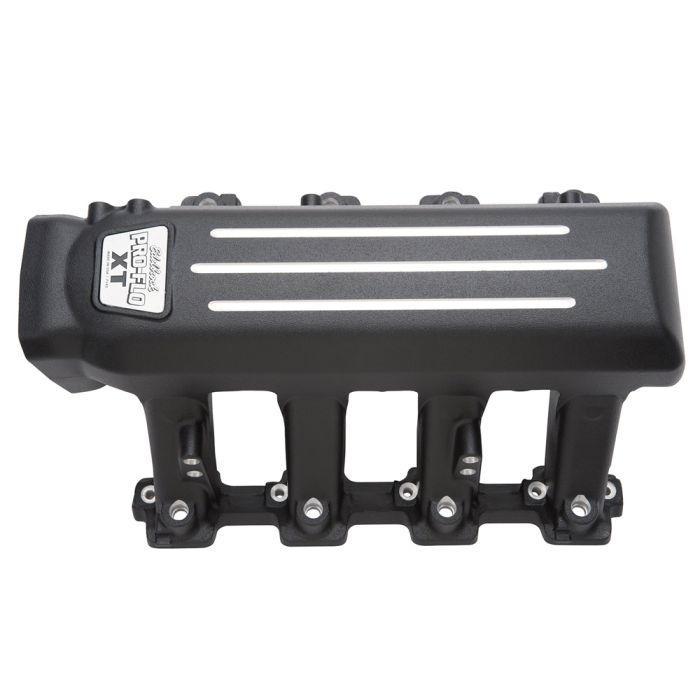

Edelbrock Pro Flo XT Intake Manifold Black Small Block Chevrolet LS3

The use of this Pro Flo XT Small Block Chevrolet LS3 Intake Manifold by Edelbrock keeps your LS3 engine's electronic, sequential port fuel injection running smoothly. It will accept late-model LS Drive-By-Wire throttle bodies and Edelbrock 90mm 4-bolt throttle bodies.

Features and Benefits:
- Required for LS3 engines or engine swaps
- Single plane-type manifold
- Accepts late-model LS Drive-By-Wire throttle bodies
- Accepts Edelbrock 90mm mechanical throttle bodies
- 1,500 to 7,000 RPM operating range
- Aluminum construction with black powder-coated finish
- Center maximum height: 9.68"
- Front maximum height: 9.28"
- Rear maximum height: 9.68"
- Port exit dimensions: 1.23" x 2.52"
- Made in the USA

This single-plane intake manifold (7142) has a log-style plenum, tunnel ram-style runners, and a spot specifically for installing an LS3-style MAP sensor. It operates at a range of 1,500 to 7,00 RPM. The throttle body flange is designed for use with a 90mm throttle bore, but it can be ported for use with a bore up to 105mm. It's also made in the USA from aluminum and is given a slick, black powder-coated finish.

Kit Includes:
- (1x) Manifold
- (1x) 1/4" NPT Plug
- (1x) 1/8" NPT Plug
- (1x) M6 x 12mm Hex Flange Bolt
- (1x) Throttle Bracket
- (2x) M6 x 16mm Hex Flange Bolts
- (1x) MAP Sensor Bracket

Tech Tips:
- Uses LS3/L92/L76 style individual port O-ring seals (GM #19256623 or Edelbrock #7395).
- Throttle body recommendations: Edelbrock #3869, #38693, or OEM drive-by-wire style.
