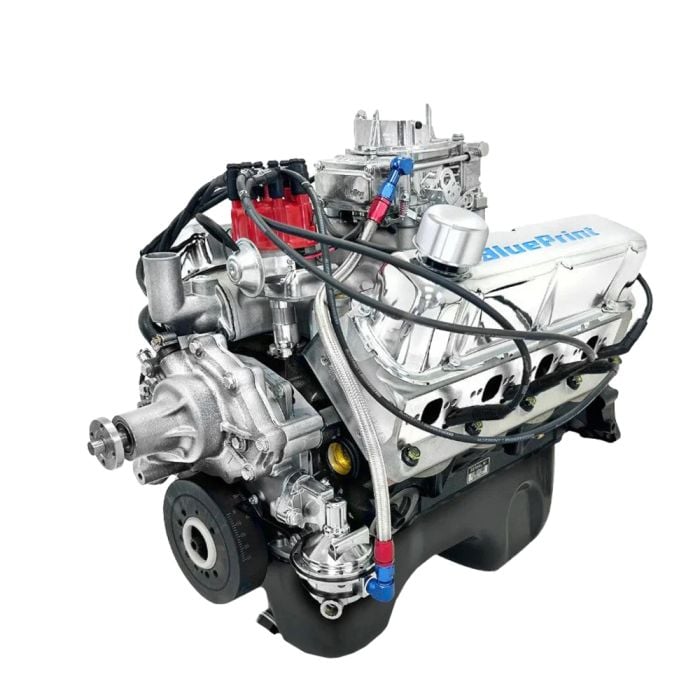

BluePrint Engines Ford 302 Crate Engine Carbureted Deluxe Dressed Rear Sump 361 HP

This crate engine (BP302RCTCD) includes a Holley Street Warrior carburetor for precise fuel delivery. It's also deluxe-dressed with accessories including a water pump, harmonic balancer, and an all-in-one timing cover. It adds 361 horsepower and 334 ft. lbs. of torque to your ride with a 9.4:1 compression ratio. The included aluminum cylinder heads boost efficiency and airflow while a priority main oiling system maintains necessary lubrication. In demanding driving conditions, your driving experience will be both powerful and responsive!

Features and Benefits:
- High-strength cast iron base-dressed crate engine block
- 361 Horsepower / 334 FT. LBS. Torque
- Compression Ratio: 9.4:1
- Features 4-bolt main, 4.000" bore, and 1-piece rear main seal
- Increased block deck thickness and strength webbing
- Block has priority main oiling and improved water jacket design
- Cast crankshaft with hypereutectic pistons and 3.000" rotation stroke
- OEM-type 5.090" crankshaft connecting rods
- Crankshaft has 50-oz. externally balanced front and rear
- Aluminum cylinder heads feature 60cc chambers
- Hydraulic roller cam design
- Ignition timing: 10-16 degree initial; 32-24 degree total
- Holley Street Warrior 600cfm vacuum secondary carburetor w/ electric choke
- Backed by BluePrint Engines' 30-month/50,000-mile warranty

Cylinder Head Specifications:
- 60cc Chambers
- 2.02" Intake / 1.60" Exhaust Valves
- 190cc Intake / 60cc Exhaust Runners

Camshaft Specifications:
- 0.533” Intake / 0.544” Exhaust Lift
- 215 Intake / 220 Exhaust Duration
- @ 0.050-114° Lobe Separation

Deluxe Dressed Includes:
- Valve Covers
- Dual/Rear Sump Oil Pan
- Timing Cover
- Intake Manifold
- Distributor
- Harmonic Balancer
- Spark Plugs and Wires
- Water Pump
- Thermostat and Thermostat Housing
