BluePrint Engines Pro Series Engine 376CI 530HP Base GM LS-Style W/O Ecu/ Harness
Highlights
- 530HP LS Power
- Forged Rotating Assembly
- Aluminum LS3 Heads
- Internally Balanced Front/Rear

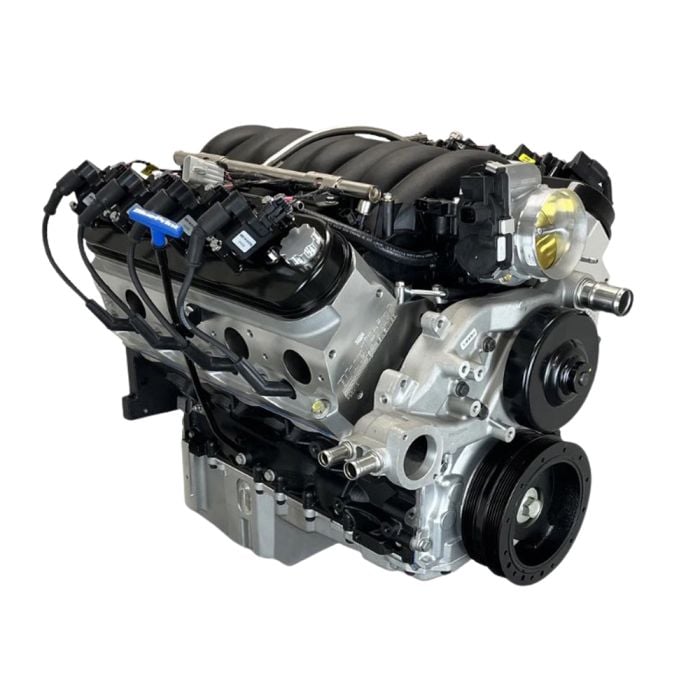

BluePrint Engines Pro Series 376CI 530HP Base-Dressed GM LS-Style Engine without ECU or Harness.
This premium engine (PSLS37630CTF) unlocks spirited drives and uncompromising LS power for your vehicle. It uses a combination of premium forged parts, and a high-strength LSX-style cast iron block for unmatched durability. This street-proven powerhouse delivers extreme horsepower and torque. The 10.7:1 compression ratio and 3.622” stroke deliver explosive low-end torque and responsive throttle performance, making it perfect for muscle car restorations and restomods.
Features and Benefits:
- 530 horsepower and 495 lb-ft torque output
- 10.7:1 compression ratio for maximum performance
- Hydraulic roller cam with .612/.585 lift and 225/238 duration
- 3.622” stroke and 6.125” rods with 150k PSI bolts for balanced power
- Improved water jacket design and extended cylinder skirt
- Internally balanced front and rear
- Ready for custom ECU and harness setup
- Compatible with most LS swap applications
- Ideal for Pro Touring, muscle car, and truck swaps
Specifications:
- 4.0662" bore and 6-bolt main
- 69cc chamber
- 2.165" intake and 1.590" exhaust valves
- 259cc intake and 102cc exhaust runners
- .050-114-degree lobe separation
Kit Includes:
- BluePrint high-strength LSX-style cast iron block
- BluePrint Engines LS3 aluminum cylinder heads, fuel injectors, and rail
- Nodular iron crankshaft, pistons, and forged connecting rods
- LS swap oil pan, windage tray, and pick up screen
- Factory LS3 front and rear covers
- DBW throttle body (P/N: BPP12191019)
- Water pump (P/N: BPPLS126WP)
- GM plastic intake manifold
- Spark plugs, wires, harmonic balancer, coil packs, and sensors
Vehicle Fitment:
- 1965-2010 Mustangs
- 1960-1998 Chevy C10/C20/C30s and 1500/2500/3500s
- 1948-1979 F-100s
- 1966-1977 Broncos
Tech Tips:
- Recommended fuel: 91 Octane.
- BluePrint Engines recommends air intake kit P/N: BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained.
Please Note: Engine is not shipped with engine controller kit. This is a dressed long block only. No harness or ECU is provided. This is for customers wishing to use their own engine controller package. You must purchase separately for your application. Controller kit can be found by P/N: BPPLS530.
California Residents: Proposition 65 Warning
Related Categories: Mustang Engine, Bronco Engine, Restomod Engine, F-100 Engine, F-100 Restomod Engine
Only for use on pre-pollution controlled vehicles: This product can be used on vehicles that were manufactured before emissions control regulations were imposed. Pre-pollution vehicles are defined as:
- 1965 and older U.S. manufactured California certified vehicles
- 1967 and older U.S. manufactured federally certified vehicles
truck_freight_free_product Vehicle Fitment
This product will fit the following Bronco years:
This product will fit the following C/K years:
- 1988,
- 1989,
- 1990,
- 1991,
- 1992,
- 1993,
- 1994,
- 1995,
- 1996,
- 1997,
- 1998,
This product will fit the following C10 years:
- 1960,
- 1961,
- 1962,
- 1963,
- 1964,
- 1965,
- 1966,
- 1967,
- 1968,
- 1969,
- 1970,
- 1971,
- 1972,
- 1973,
- 1974,
- 1975,
- 1976,
- 1977,
- 1978,
- 1979,
- 1980,
- 1981,
- 1982,
- 1983,
- 1984,
- 1985,
- 1986,
- 1987,
This product will fit the following F-100 years:
- 1948,
- 1949,
- 1950,
- 1951,
- 1952,
- 1953,
- 1954,
- 1955,
- 1956,
- 1957,
- 1958,
- 1959,
- 1960,
- 1961,
- 1962,
- 1963,
- 1964,
- 1965,
- 1966,
- 1967,
- 1968,
- 1969,
- 1970,
- 1971,
- 1972,
- 1973,
- 1974,
- 1975,
- 1976,
- 1977,
- 1978,
- 1979,
This product will fit the following Mustang years:
