Edelbrock Intake Manifold/ Fuel Rail Kit Victor Jr. EFI GM LS1 Engine
Highlights
- Supports up to 650 HP
- Single-Plane Intake
- Enhanced Engine Breathing
- Made in the USA

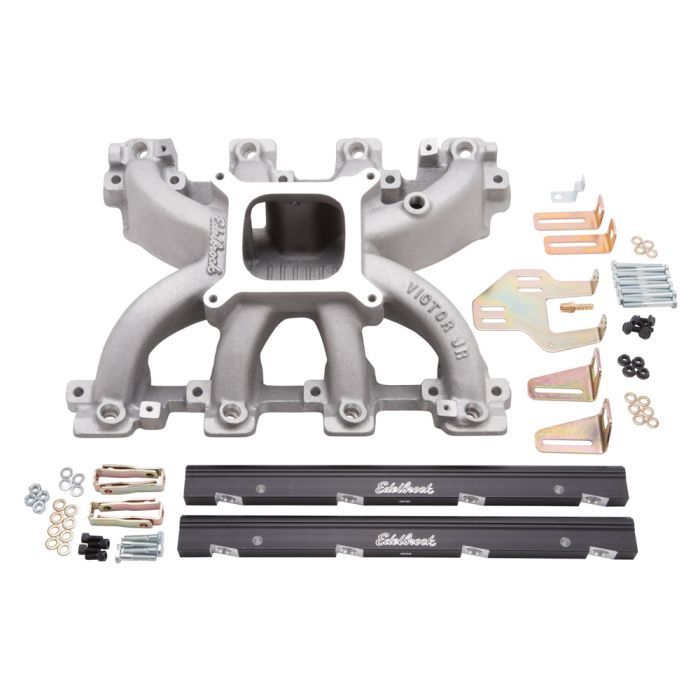

Edelbrock EFI Victor Jr. Intake Manifold and Fuel Rail Kit for GM LS1 Engines.
When your GM LS1 engine gets the proper air/fuel mixture, it will inevitably perform better. Edelbrock's EFI Victor Jr. Intake Manifold and Fuel Rail Kit (29086) is the solution for advanced engine breathing. Edelbrock distributes a balanced cylinder-to-cylinder air/fuel mixture while supporting up to 650 horsepower.
Features and Benefits:
- Compact, Single-Plane Design
- Capable of Supporting 650 HP
- Balanced Cylinder-to-Cylinder Air/Fuel Distribution
- Proudly Made in the USA!
The Edelbrock Victor Jr. LS1 EFI intake manifold will accept a standard square bore throttle body. This compact single-plane Intake comes with a throttle bracket that's compatible with 700-R4, 200-4R, and Turbo 350 transmissions. Also included is an Edelbrock Fuel Rail Kit (3638).
Specifications:
- Center Maximum Height: 4.950 Inches
- CNC Ported: No
- Front Maximum Height: 4.950 Inches
- Material: Aluminum
- Rear Maximum Height: 4.950 Inches
- Single Or Dual Plane Type: Single Plane
Tech Tip: Recommended intake gasket: LS1/LS6 style individual port o-ring seals or EDL7386.
Please Note: Most applications will require hood modification.
California Residents: Proposition 65 Warning
Related Categories: Mustang Parts, Mustang Engine, Ford Bronco Parts, Ford F-100 Parts, Bronco Engine
Vehicle Fitment
This product will fit the following Bronco years:
This product will fit the following C10 years:
- 1960,
- 1961,
- 1962,
- 1963,
- 1964,
- 1965,
- 1966,
- 1967,
- 1968,
- 1969,
- 1970,
- 1971,
- 1972,
- 1973,
- 1974,
- 1975,
- 1976,
- 1977,
- 1978,
- 1979,
- 1980,
- 1981,
- 1982,
- 1983,
- 1984,
- 1985,
- 1986,
- 1987,
This product will fit the following F-100 years:
- 1948,
- 1949,
- 1950,
- 1951,
- 1952,
- 1953,
- 1954,
- 1955,
- 1956,
- 1957,
- 1958,
- 1959,
- 1960,
- 1961,
- 1962,
- 1963,
- 1964,
- 1965,
- 1966,
- 1967,
- 1968,
- 1969,
- 1970,
- 1971,
- 1972,
- 1973,
- 1974,
- 1975,
- 1976,
- 1977,
- 1978,
- 1979,
This product will fit the following Mustang years:
