Edelbrock Pro-Flo 4 EFI Ignition/IAC Harness for Chevrolet Gen IV 58X LS Engine

Edelbrock:
35714
$70.95

Edelbrock Pro-Flo 4 EFI Ignition/IAC Harness for Chevrolet Gen IV 58X LS Engine

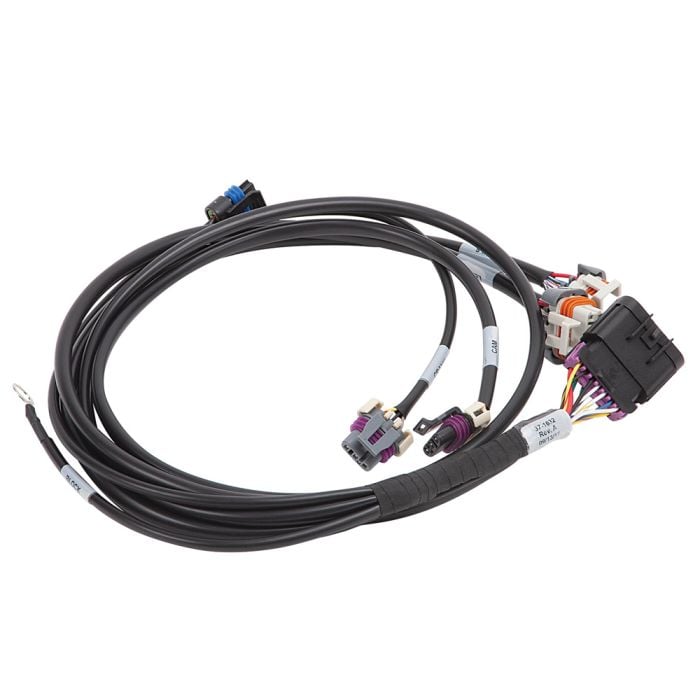

The Edelbrock Ignition/IAC Harness Kit #35714 is a supplemental harness designed specifically for those who have purchased or are planning to purchase a Pro-Flo 4 EFI System for the Chevrolet Gen IV 58X LS engine with either the 4150-style or Pro-Flo XT intake manifold. The #35714 Harness Kit is required and must be ordered separately due to the two different crank trigger designs of the Gen IV (58X reluctor) and earlier Gen III (24X reluctor) LS engines. The Gen IV 58X LS engine is easily identified by the crank sensor located at the rear of the block behind the starter, and the camshaft sensor located in the front cover.The Edelbrock Ignition/IAC Harness #35714 connects to the Pro-Flo 4 LS EFI Kit’s main harness labeled “Coils/IAC” and provides connections for the Coil Pack harness, Crank Sensor, Cam Sensor, and Stepper IAC Motor. This harness is a supplemental kit that is required when installing a Pro-Flo 4 LS EFI Kit on a Chevy Gen III 24X LS engine. Edelbrock sells Gen IV #35714 and Gen III #35713 harnesses separately from the Gen IV and Gen III Pro-Flo 4 EFI Systems in an effort to keep production costs of the EFI kits to a minimum and prevent the waste of an unused harness in each kit. Detailed instructions are included with this kit, and technical support is available in real-time chat on the Edelbrock website or you can call the Tech Line at (800) 416-8628.(Note: Owners of the Gen III 24X LS engine that plan to install a Pro-Flo 4 LS EFI Kit must order EFI Harness #35713.)


Installation Notes

    Owners of the Gen III 24X LS engine that plan to install a Pro-Flo 4 LS EFI Kit must order EFI Harness #35713.

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following Bronco years:

This product will fit the following C10 years:

This product will fit the following F-100 years:

  • 1948,
  • 1949,
  • 1950,
  • 1951,
  • 1952,
  • 1953,
  • 1954,
  • 1955,
  • 1956,
  • 1957,
  • 1958,
  • 1959,
  • 1960,
  • 1961,
  • 1962,
  • 1963,
  • 1964,
  • 1965,
  • 1966,
  • 1967,
  • 1968,
  • 1969,
  • 1970,
  • 1971,
  • 1972,
  • 1973,
  • 1974,
  • 1975,
  • 1976,
  • 1977,
  • 1978,
  • 1979,

This product will fit the following Mustang years:

This product will fit the following Sierra years:

This product will fit the following Sierra 2500/3500 years:

This product will fit the following Silverado years:

This product will fit the following Silverado 2500/3500 years:
