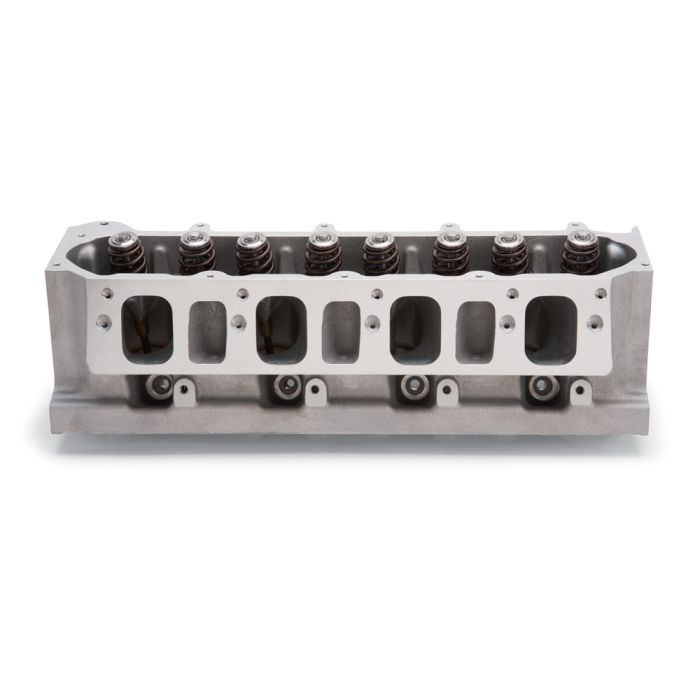

Edelbrock Victor Jr Gen V LT1/LT4 Chevrolet Complete Cylinder Head Hydraulic Roller Camshaft

Edelbrock:
77139
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 4.32ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$1,499.50

Edelbrock Victor Jr Gen V LT1/LT4 Chevrolet Complete Cylinder Head Hydraulic Roller Camshaft

CYL HEAD CHEVY GEN V LT1/LT4 VICTOR JR. COMPLETE

Our Victor Jr. cylinder heads are an excellent upgrade for ultra high-performance on GM Gen V LT1 racing engines. The biggest change and advantage of Victor Jr. is the revised exhaust ports, which have been moved 1.5 horizontally to improve air flow. This revision will require the use of custom exhaust manifolds and headers. They have been designed with high flow intake/exhaust ports and back cut intake valves for improved air flow. The valve position has also been revised to accommodate interlocking valve seat rings and larger valves. The intake valve has been increased to 2.20 diameter and has hollow stem valves with a 45-ª seat angle, while the exhaust valve has a diameter of 1.60 and utilizes a 50-ª seat angle. It's designed with a thicker deck and more material in the intake, exhaust and port walls for improved strength, durability and for additional porting and deck milling. This cylinder head features fully CNC machined intake ports, combustion chambers and exhaust ports for improved performance. The Victor Jr. retains the stock rocker arm, intake port and spark plug tip location for use with factory components. Like all of our other cylinder heads, these have been designed, tested and cast from 356 aluminum and heat treated to T-6 specs in our facilities in Southern California to guarantee you get the best from a name you can trust. ** INSTALLATION NOTE: Match with Edelbrock head gasket sets. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4 reach with flat gasket seat.

The Edelbrock part # 77139 Victor Jr. LT1/LT4 (Gen V) cylinder heads are an excellent upgrade for ultra high-performance on GM Gen V LT1 or LT4 racing engines. The biggest change and advantage of Victor Jr. is the revised exhaust ports, which have been moved 1.5" horizontally to improve air flow. This revision will require the use of custom exhaust manifolds and headers. They have been designed with high flow intake/exhaust ports and back cut intake valves for improved air flow. The valve position has also been revised to accommodate interlocking valve seat rings and larger valves. The intake valve has been increased to 2.20" diameter and has hollow stem valves with a 45° seat angle, while the exhaust valve has a diameter of 1.60" and utilizes a 50° seat angle. It's designed with a thicker deck and more material in the intake, exhaust and port walls for improved strength, durability and for additional porting and deck milling. This cylinder head features fully CNC machined intake ports, combustion chambers and exhaust ports for improved performance. The Victor Jr. retains the stock rocker arm, intake port and spark plug tip location for use with factory components. Like all of our other cylinder heads, these have been designed, tested and cast from 356 aluminum and heat treated to T-6 specs in our facilities in Southern California to guarantee you get the best from a name you can trust.

Installation Notes:

Match with Edelbrock head gasket sets. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.

CNC Ported No
Combustion Chamber Volume 62.0 cc
Deck Height 9.240 in
Deck Thickness 0.750 in
Exhaust Valve Diameter 1.600 in
Guide Plates Included No
Intake Runner Volume 320.0 cc
Material Aluminum
Push Rod Diameter 0.375 in
Valve Spring Diameter 1.320 in
Valve Spring Maximum Lift 0.700 in
Valve Stem Diameter 0.313 in

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following C10 years:
