Edelbrock Victor Jr. Supercharged GM LS 416 Crate Engine complete EFI and accessories

Edelbrock Supercharged LS 416 crate engine Part # 46760 produces 720 horsepower and 695 ft-lbs. of torque, on 91 octane pump gas. The foundation is a brand new, aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons. Sitting on top is an Edelbrock E-Force supercharger system with Eaton TVS 2300cc/rev rotors. Also included are supercharger kit components, such as the electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb./hr. fuel injectors, mass air flow sensor (MAFS) housing and re-usable air filter. The supercharger on this engine has a driver's side throttle body orientation for ease of intake routing and a Corvette belt offset. Pair with universal heat exchangers for a complete installation.Engine Specifications: • Displacement: 416 c.i.d. • Bore: 4.065" • Stroke: 4.000" • Bore: 4.065" • Stroke: 4.0" • Horsepower: 720 hp • Torque: 695 ft-lbs. • Compression: 9.5:1 • Block: LS3 Aluminum • Crankshaft: Forged 4340 • Pistons: Forged Aluminum - 18cc • Rods: Forged H-Beam • Camshafts: 215°/247°, .629/.656, 121 LSA • Rocker Arms: LS3, 1.7 ratio • Induction: E-Force Supercharger System #1540 • Cylinder Heads: GM with Edelbrock Valve Springs #5768 • Finish: Black powder coated • Warranty: 2-year / Unlimited mileage.

Installation Notes

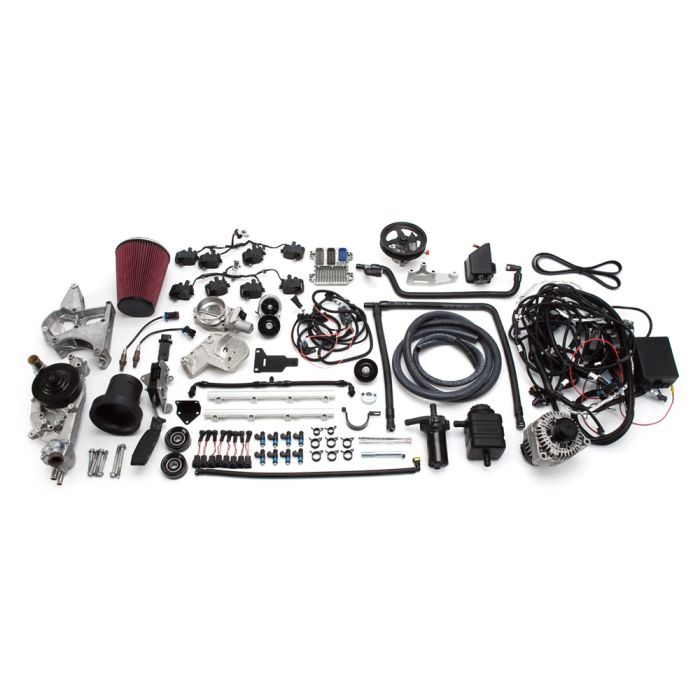

    Engine includes an Edelbrock prepped long block, E-Force supercharger, complete engine wiring harness, pre-programmed ECU, electronic throttle pedal, MAFS, throttle body, ignition coils, heated oxygen sensors and front drive accessories, such as the alternator, water pump, power steering pump, idler pulleys, required brackets and hardware. This engine package is the ultimate turn key solution for any project vehicle demanding an LS3 engine!
    Supplied with Edelbrock Break-In Oil. Before starting engine, you will need to prime the oil system. Do not turn engine over with starter motor for priming.

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following C10 years:

This product will fit the following Sierra years:

This product will fit the following Sierra 2500/3500 years:

This product will fit the following Silverado years:

This product will fit the following Silverado 2500/3500 years:
