Edelbrock Victor Jr. Supercharged GM LS 416 Crate Engine Complete EFI

Edelbrock:
46750
$24,033.95

Edelbrock Victor Jr. Supercharged GM LS 416 Crate Engine Complete EFI

Edelbrock Part # 46750 Supercharged LS 416 crate engine produces an astounding 720 horsepower and 695 ft-lbs. of torque. The foundation of this engine is a brand new, aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons. This engine features an Edelbrock E-Force supercharger with Eaton TVS 2300cc/rev rotors. Also included are the essential supercharger kit components, such as the electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb./hr. fuel injectors, mass air flow sensor (MAFS) housing and re-usable air filter. The supercharger equipped on this engine features a driver's side throttle body orientation for ease of intake routing and a Corvette belt offset. Pair with universal heat exchangers for a complete installation.Engine Specifications: • Displacement: 416 c.i.d. • Bore: 4.065" • Stroke: 4.000" • Horsepower: 720 hp • Torque: 695 ft-lbs. • Compression: 9.5:1 • Block: LS3 Aluminum • Crankshaft: Forged 4340 • Pistons: Forged Aluminum - 18cc • Rods: Forged H-Beam • Camshafts: 215°/247°, .629/.656, 121 LSA • Rocker Arms: LS3, 1.7 ratio • Induction: E-Force Supercharger System #1540 • Cylinder Heads: GM with Edelbrock Valve Springs #5768 • Finish: Black powder coated • Warranty: 2-year / Unlimited mileage • Suggested Fuel: 91 octane pump gas.

Installation Notes

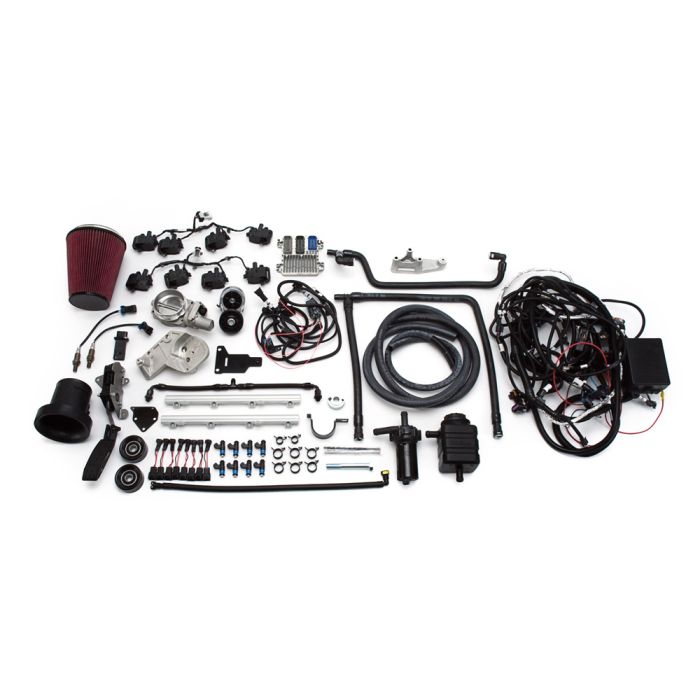

    This engine package includes an Edelbrock prepped long block, E-Force supercharger, complete engine wiring harness, pre-programmed ECU, electronic throttle pedal, MAFS, throttle body, ignition coils and heated oxygen sensors. This engine is tuned and ready to run right-out-of-the-crate, making it ideal for any project vehicle desiring an LS3 high performance solution.
    Your engine is supplied with Edelbrock Break-In Oil. Before starting engine, you will need to prime the oil system. Do not turn engine over with starter motor for priming.

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following Bronco years:

This product will fit the following C10 years:

This product will fit the following F-100 years:

  • 1948,
  • 1949,
  • 1950,
  • 1951,
  • 1952,
  • 1953,
  • 1954,
  • 1955,
  • 1956,
  • 1957,
  • 1958,
  • 1959,
  • 1960,
  • 1961,
  • 1962,
  • 1963,
  • 1964,
  • 1965,
  • 1966,
  • 1967,
  • 1968,
  • 1969,
  • 1970,
  • 1971,
  • 1972,
  • 1973,
  • 1974,
  • 1975,
  • 1976,
  • 1977,
  • 1978,
  • 1979,

This product will fit the following Mustang years:

This product will fit the following Sierra years:

This product will fit the following Sierra 2500/3500 years:

This product will fit the following Silverado years:

This product will fit the following Silverado 2500/3500 years:
