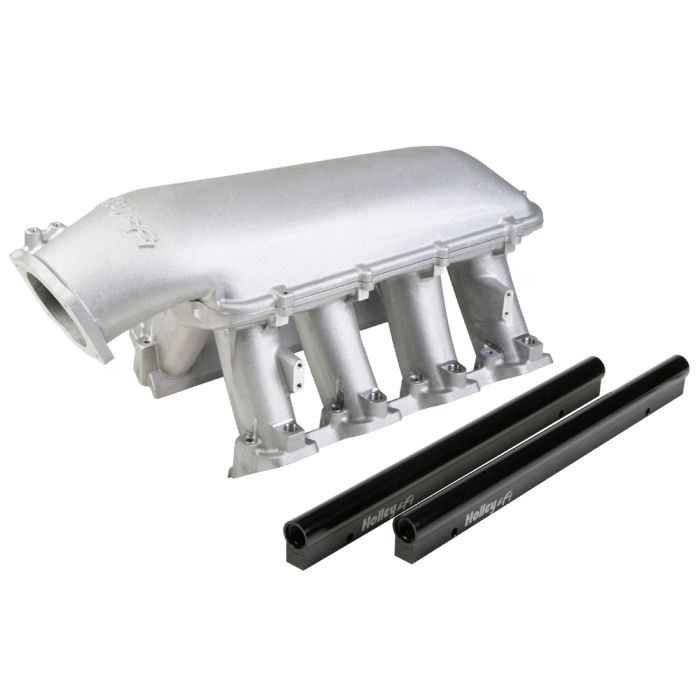

Holley GM EFI Intake Manifold Hi-Ram LS3/L92 Modular W/105MM LS Throttle Body Flange

Upgrade your high-performance engine’s induction system with a Holley GM LS3/L92 Modular Hi-Ram EFI Intake Manifold! This manifold provides an alternative to fabricated sheet metal and is designed for applications without induction system height limits. The modular base accepts a variety of carbureted and EFI tops, while the 6-1/2” runner length and tapered 4.25 in² to 2.77 in² cross-section works with a wide range of engine configurations.

Features and Benefits:
- Perfect foundation for custom induction builds
- Accepts wide range of carbed and EFI tops
- Works with several engine configurations
- Front mount 105mm LS-style throttle body flange
- EFI fuel rails machined for -8AN O-ring fittings
- Durable cast aluminum construction
- Your choice of a natural or black finish
- Made in the USA

This makes the manifold the ideal choice for the foundation of custom systems on naturally aspirated or forced induction engines in the 6.0 to 7.0+ liter range, with max power at 7000-8000+RPM. The included EFI fuel rails are built to accept high fuel flows while dampening pressure pulsations for excellent efficiency. These manifolds are made from durable cast aluminum and come in a natural or black finish for a custom look.

Tech Tip: Pair this manifold with high flowing LS3/L92-style cylinder heads for outstanding potential.

Please Note: The throttle body is not included.

Specifications:
- Base Plenum Top Mounting Flange Height – 8.42” to the lifter valley cover flange on engine block.
- Total Height with 105mm EFI Plenum Top – 12.32” to the lifter valley cover flange on engine block.
- Port Size – 2.49” Height x 1.21” Wide
- Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
- Plenum Top Gasket Type – 3/32” Round O-ring Cord
- Throttle Body Flange Location, with 105mm EFI Plenum Top : Height – 8.42” (from engine block lifter valley cover flange), Longitudinal Location – 3.84” (forward from engine block front flange), Angle – 25 deg. (down from vertical)
- Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.77 in²
- Intended for use on naturally aspirated or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM

Vehicle Fitment:
- 1965-2010 Ford Mustangs
- 1966-1977 Ford Broncos
- 1948-1979 Ford F-100s
- 1960-1987 Chevrolet C10s
