Aeromotive Fuel Cell 15 Gallon With Brushless Spur 5.0 Fuel Pump And TVS Controller
Highlights
- Size is 27” x 23” x 13”
- Premium Materials
- Universal Fitment
- For High HP Engines

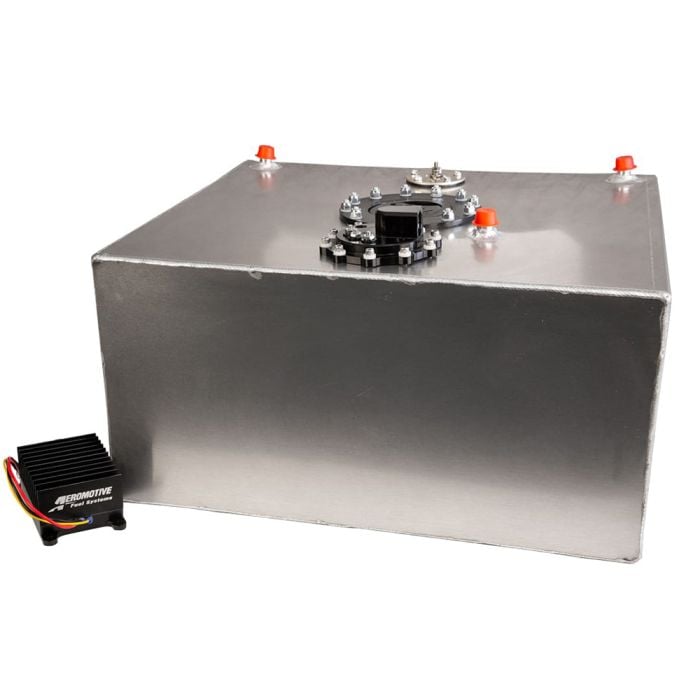

Aeromotive 15 Gallon Fuel Cell with Brushless Spur 5.0 Fuel Pump and TVS Controller.
These 15 Gallon Fuel Cells (19310) from Aeromotive come with an In-Tank True Variable Speed Brushless Fuel Pump and brushless controller. Lighter and higher powered than traditional fuel pumps, these cells are perfect for racers and powerful street cars.
Features and Benefits:
- Lighter than the traditional Pro-Series pump
- Reduced current draw at higher, EFI pressures
- Extended service life in methanol and ethanol
- Integral, external brushless controller for a clean installation
- ORB-10 outlet port
- Baffled design keeps fuel at the pump inlet
- Fluted pickup with integrated 100-m prefilter
- Aircraft fuel cap
This fuel pump features an extended service life for methanol and ehtanol-based fuels, and uses a new integral spur-gear pumping mechanism. The integral, external brushless controller provides cleaner installation, lower fuel temperatures, and increased durability.
With the advantages of built-in pump speed control, the True Variable Speed controller improves on existing brushless technology. It reduces fuel flow during low engine demand, minimalizing motor heat and reducing fuel recycling.
Specifications:
- EFI rated flow of 1700 lbs./hr. @ 45 psi, 13.5 volts
- Carb rated flow of 1850 lbs./hr. @ 9 psi, 13.5 volts
- 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost
- Fuel Injected Engines: GAS
Up to 3400 FWHP – naturally-aspirated
Up to 2600 FWHP – forced air induction
- Carbureted Engines: GAS
Up to 3600 FWHP – naturally-aspirated
Up to 2700 FWHP – forced air induction
- Fuel Injected Engines: E85
Up to 2380 FWHP – naturally-aspirated
Up to 1820 FWHP – forced air induction
- Carbureted Engines: E85
Up to 2520 FWHP – naturally-aspirated
Up to 1890 FWHP – forced air induction
- Fuel-injected engines: METHANOL
Up to 1190 FWHP – naturally-aspirated
Up to 910 FWHP – forced air induction
- Carbureted engines: METHANOL
Up to 1260 FWHP – naturally-aspirated
Up to 945 FWHP – forced air induction
Please Note: Requires straight 12-VDC to the 16-VDC power supply. Not compatible with pulse-modulated systems or fuel pump speed controllers.
California Residents: Proposition 65 Warning
Related Categories: Mustang Parts, Mustang Engine, Mustang Fuel Tank Area, Mustang Fuel Tanks, Ford Bronco Parts
Only for use on pre-pollution controlled vehicles: This product can be used on vehicles that were manufactured before emissions control regulations were imposed. Pre-pollution vehicles are defined as:
- 1965 and older U.S. manufactured California certified vehicles
- 1967 and older U.S. manufactured federally certified vehicles
